In the oil and gas industry, the quality and specifications of pipes are crucial for ensuring safe and efficient operations. Among the various types of pipes used, API 5L X52 PSL2 pipes have gained significant popularity due to their exceptional performance and reliability. In this comprehensive guide, we'll delve into the specifics of X52 PSL2 pipes, focusing on their sizes, outer diameters, wall thicknesses, and lengths. Whether you're a seasoned professional or new to the field, this article will provide valuable insights into these essential components of pipeline systems.
|
|
|

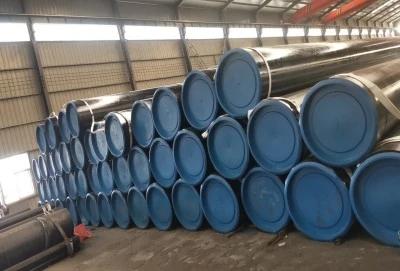

Understanding API 5L X52 PSL2 Pipes: An Overview
Before we dive into the specifics of pipe dimensions, it's important to understand what API 5L X52 PSL2 pipes are and why they're so widely used. API 5L refers to the American Petroleum Institute's specification for line pipe, which sets the standards for pipes used in transporting gas, water, and oil in the petroleum and natural gas industries. The 'X52' designation indicates the grade of steel used, with a minimum yield strength of 52,000 psi (358 MPa). PSL2, or Product Specification Level 2, denotes a higher level of testing and quality control compared to PSL1 pipes.
API 5L X52 PSL2 pipes are known for their excellent strength-to-weight ratio, corrosion resistance, and weldability. These properties make them ideal for use in challenging environments and high-pressure applications. The pipes can be manufactured using various methods, including seamless (SMLS), electric resistance welded (ERW), and longitudinal submerged arc welded (LSAW) processes, each offering unique advantages depending on the specific application requirements.

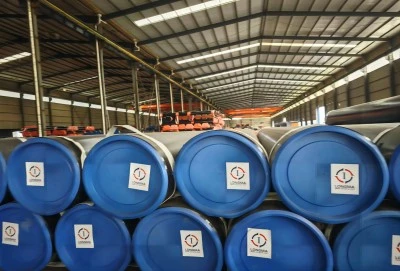

API 5L X52 PSL2 Pipe Sizes: Outer Diameter and Wall Thickness
API 5L X52 PSL2 pipes are available in a wide range of sizes to accommodate various project requirements. The size of a pipe is typically defined by its outer diameter (OD) and wall thickness. Let's explore these dimensions in detail:
Outer Diameter (OD): The outer diameter of API 5L X52 PSL2 pipes can range from as small as 1/8 inch (10.3 mm) to as large as 80 inches (2032 mm). This wide range allows for flexibility in pipeline design and construction. Some common OD sizes include:
- 2 3/8 inches (60.3 mm)
- 4 1/2 inches (114.3 mm)
- 8 5/8 inches (219.1 mm)
- 12 3/4 inches (323.9 mm)
- 20 inches (508 mm)
- 30 inches (762 mm)
- 48 inches (1219.2 mm)
Wall Thickness: The wall thickness of API 5L X52 PSL2 pipes varies depending on the required pressure rating and application. Wall thicknesses typically range from SCH10 (6.35 mm) to SCH160 (59.54 mm). Some common wall thickness ranges include:
- 0.188 inches (4.78 mm) to 0.250 inches (6.35 mm) for smaller diameter pipes
- 0.375 inches (9.53 mm) to 0.500 inches (12.7 mm) for medium diameter pipes
- 0.625 inches (15.88 mm) to 1.000 inches (25.4 mm) for larger diameter pipes
It's important to note that the relationship between outer diameter and wall thickness is crucial in determining the pipe's pressure rating. Generally, pipes with larger outer diameters require thicker walls to maintain the same pressure rating as smaller pipes.
API 5L X52 PSL2 Pipe Lengths: Standard and Custom Options
The length of API 5L X52 PSL2 pipes is another important factor to consider when planning pipeline projects. While standard lengths are commonly available, custom lengths can often be ordered to meet specific project requirements. Let's explore the typical length options:
Standard Lengths: API 5L X52 PSL2 pipes are commonly available in lengths ranging from 6 meters (19.7 feet) to 18 meters (59 feet). The most frequently used standard lengths include:
- 6 meters (19.7 feet)
- 12 meters (39.4 feet)
- 18 meters (59 feet)
These standard lengths are designed to balance transportation efficiency with ease of handling and installation on-site.
Custom Lengths: Many manufacturers offer the flexibility to produce API 5L X52 PSL2 pipes in custom lengths to meet specific project needs. Custom lengths can be particularly useful for:
- Reducing the number of field welds required during installation
- Accommodating unique terrain or installation constraints
- Optimizing material usage and reducing waste
When ordering custom lengths, it's important to consider factors such as transportation limitations, handling equipment capabilities, and installation methods.
End Finishes: API 5L X52 PSL2 pipes are typically available with either plain ends (PE) or beveled ends (BE). Beveled ends are often preferred for welding applications as they facilitate proper joint preparation and weld quality.
Contact Longma Group
API 5L X52 PSL2 pipes offer a versatile solution for various pipeline applications in the oil and gas industry. With their wide range of sizes, including outer diameters from 1/8 inch to 80 inches and wall thicknesses from SCH10 to SCH160, these pipes can meet diverse project requirements. The availability of standard lengths from 6 to 18 meters, along with custom length options, provides flexibility in pipeline design and installation.
When selecting API 5L X52 PSL2 pipes for your project, it's crucial to consider factors such as operating pressure, environmental conditions, and installation methods to determine the most appropriate size, wall thickness, and length. By carefully evaluating these parameters, you can ensure optimal performance and longevity of your pipeline system.
