Material Properties And Weldability:
API 5L X80 pipe weldability represents a significant advancement in pipeline technology, offering an optimal combination of high strength and excellent toughness. This grade of pipe is characterized by a minimum yield strength of 555 MPa (80,000 psi) and a tensile strength range of 625-825 MPa. The chemical composition typically includes controlled amounts of carbon (≤0.12%), manganese (≤1.85%), and micro-alloying elements such as niobium, vanadium, and titanium, which contribute to its superior mechanical properties.
The weldability of X80 pipe is influenced by its carbon equivalent (CE) value, which typically ranges from 0.43 to 0.45. Lower CE values generally indicate better weldability. The material achieves its properties through thermomechanical controlled processing (TMCP), resulting in a fine-grained microstructure consisting primarily of acicular ferrite and bainite. This microstructure provides an excellent balance of strength and toughness, but careful control of welding parameters is essential to maintain these properties in the welded joint. During welding, the material undergoes significant microstructural changes, particularly in the heat-affected zone (HAZ). The challenge lies in maintaining adequate toughness in this region while achieving the required strength. Studies have shown that the cooling rate during welding significantly influences the final microstructure and mechanical properties. Typical cooling rates between 800°C and 500°C (t8/5) should be maintained between 10 and 30 seconds to achieve optimal properties.
|
|
|
Welding Process:
Gas Metal Arc Welding (GMAW) has emerged as the preferred method for welding API 5L X80 pipe, particularly in automated applications. This process offers several advantages, including high deposition rates, good penetration, and excellent control over heat input. Modern GMAW systems utilize sophisticated power sources capable of controlling the metal transfer mode, which is crucial for achieving consistent weld quality.
The use of internal copper backing rings or internal welding systems has become standard practice for pipes with diameters exceeding 24 inches. These backing methods provide several benefits, including improved root pass quality and increased welding speed. The internal copper backing ring acts as a heat sink and helps prevent burn-through while maintaining proper root geometry. Internal welding systems, though more complex, offer the advantage of simultaneous internal and external welding, significantly increasing productivity. Advanced welding techniques such as narrow gap welding and tandem wire GMAW are increasingly being employed. These methods can increase productivity by up to 30% compared to conventional processes. The narrow gap technique reduces the volume of weld metal required, thereby minimizing distortion and residual stresses. Tandem wire GMAW utilizes two wire electrodes in a single torch, effectively doubling the deposition rate while maintaining good control over the weld pool.
Welding Parameters:
Welding parameters for API 5L X80 pipe must be carefully controlled to achieve optimal results. The heat input typically ranges from 0.5 to 2.0 kJ/mm, with lower values preferred for critical applications. Travel speeds generally range from 250 to 400 mm/min for automated systems, though this can vary depending on the specific application and joint design. The interpass temperature should be maintained below 200°C to prevent excessive grain growth and ensure proper mechanical properties.
Environmental conditions significantly impact welding parameters. In mountainous regions, where temperatures can fluctuate dramatically, preheating may be necessary to prevent cold cracking. Desert environments present challenges related to wind protection and temperature control, while glacier regions require special consideration for low-temperature toughness. Offshore applications must account for additional factors such as humidity control and corrosion protection. Wire chemistry selection is crucial for achieving proper mechanical properties. Typical filler metals contain controlled amounts of nickel and molybdenum to enhance low-temperature toughness. The shielding gas composition, usually a mixture of argon with 15-25% CO2, plays a vital role in achieving proper penetration and minimizing spatter. Flow rates typically range from 15 to 20 L/min, though this may need adjustment based on environmental conditions.
Heat Affected Zone (HAZ):
The HAZ in API 5L X80 pipe welds exhibits distinct regions with varying microstructures and properties. The coarse-grained HAZ (CGHAZ) adjacent to the fusion line typically shows the most significant changes, with grain sizes potentially reaching 100 μm or larger. This region often exhibits lower toughness compared to the base material and requires careful control of welding parameters to minimize its extent.
Research has shown that the fine-grained HAZ (FGHAZ) and intercritical HAZ (ICHAZ) can also present challenges. The FGHAZ, while generally exhibiting good toughness, may show reduced strength compared to the base material. The ICHAZ, particularly in multi-pass welds, can develop local brittle zones due to partial reaustenitization during subsequent passes. Modern welding procedures often incorporate techniques such as temper bead welding to refine these regions and improve their properties. Microstructural studies have revealed that the HAZ typically contains various proportions of martensite, bainite, and ferrite, depending on the local thermal cycle. The presence of martensite-austenite (M-A) constituents in the HAZ can be particularly detrimental to toughness. Control of cooling rates through proper heat input management and interpass temperature control is essential for minimizing these potentially harmful constituents.
API 5L X80 Pipe For Sale:

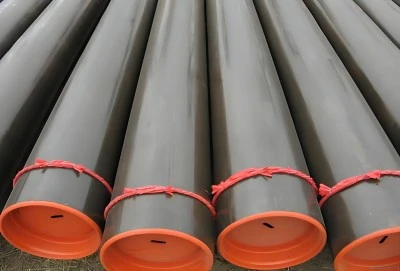

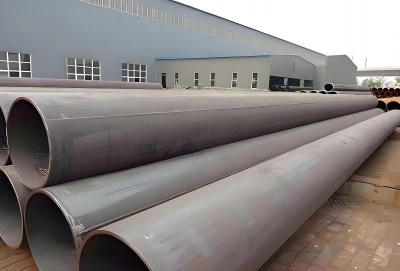

LONGMA GROUP specializes in manufacturing API 5L X80 pipe in accordance with PSL1 and PSL2 specifications. Their products undergo rigorous quality control measures, including comprehensive mechanical testing and non-destructive examination, to ensure compliance with international standards. The manufacturing process incorporates advanced TMCP technology to achieve the required mechanical properties while maintaining excellent weldability. If you are choosing your api 5l x80 pipe manufacturers, welcome to contact us at info@longma-group.com.
