ASTM A252 Grade 3 pipe is a high-strength steel pipe widely used in construction and infrastructure. Specified by ASTM standard A252, Grade 3 is the highest strength grade. It is typically made from carbon steel with controlled chemical composition, using methods like electric resistance welding (ERW) and submerged arc welding (SAW). This grade is known for its high strength and good weldability, making it suitable for foundation piles, marine structures, and bridge foundations. Its superior yield and tensile strengths allow for thinner walls, potentially reducing material costs in certain designs.
High Tensile Strength (455 MPa or 66,000 psi)
One of the defining characteristics of ASTM A252 Grade 3 pipe is its exceptional tensile strength, with a minimum required value of 455 MPa (66,000 psi). This property, often referred to as ultimate tensile strength, represents the maximum stress that the material can endure while being stretched or pulled before failing. The high tensile strength of A252 Grade 3 pipe is critical for various applications, particularly in construction and infrastructure projects, where the ability to support significant loads is essential.
In practical terms, this tensile strength translates into a remarkable load-bearing capacity, enabling the pipe to resist failure under tension. This is particularly advantageous in pile applications, where the pipes are subjected to high axial loads and bending moments. The ability to withstand these forces not only ensures the stability of the structure but also extends its lifespan, as the material can effectively handle dynamic and static loads without compromising safety.
Furthermore, while 455 MPa is the minimum specified value, many manufacturers strive to exceed this threshold, often producing pipes with tensile strengths approaching or even surpassing 480 MPa (70,000 psi). This added strength provides a significant safety factor, allowing engineers and designers to incorporate ASTM A252 Grade 3 pipe into their projects with confidence. By ensuring that the materials used can withstand extreme loading conditions, project teams can enhance overall structural integrity, making A252 Grade 3 pipe a reliable choice for demanding applications in construction and civil engineering.
Yield Strength (310 MPa or 45,000 psi)
The yield strength of ASTM A252 Grade 3 pipe is specified as a minimum of 310 MPa (45,000 psi). Yield strength is a critical property in structural design, as it represents the stress at which a material begins to deform plastically. In other words, it's the point at which the material will not return to its original shape when the load is removed.
This high yield strength allows A252 Grade 3 pipe to maintain its shape and structural integrity under substantial loads. In pile applications, this means the pipe can resist buckling and permanent deformation even when subjected to high compressive forces from the weight of overlying structures or lateral earth pressures.
The ratio between the yield strength and tensile strength is also important. For ASTM A252 Grade 3 pipe, this ratio is approximately 0.68 (310 MPa / 455 MPa). This relatively high ratio indicates good ductility, allowing the material to undergo some plastic deformation before ultimate failure. This property is beneficial in seismic design and other applications where some degree of structural yielding may be acceptable or even desirable for energy dissipation.
It's worth noting that the actual yield strength of A252 Grade 3 pipe often exceeds the minimum requirement. Many manufacturers produce pipes with yield strengths in the range of 345-380 MPa (50,000-55,000 psi) to ensure consistent compliance with the standard and to meet the needs of more demanding applications.
China ASTM A252 Steel Pipe

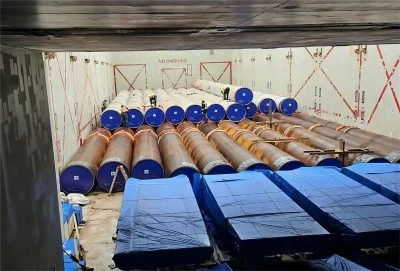

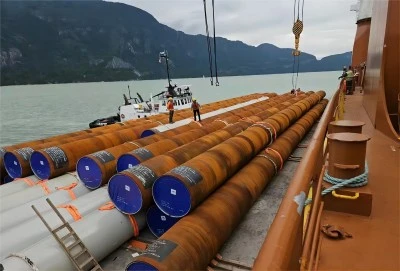

LONGMA GROUP, a prominent Chinese supplier, offers a comprehensive range of ASTM A252 Steel Pipe with impressive specifications tailored to meet diverse project needs. The outer diameter ranges from 219.1mm to 1016mm, while the thickness spans from 8.18mm to 25mm. Additionally, the lengths available range from 3 to 18 meters, accommodating various applications from relatively small diameter foundation piles to larger marine piles. This capability to produce pipes up to 18 meters in length is especially beneficial for deep foundation projects, as it minimizes the number of field welds required during installation, ultimately enhancing structural integrity and efficiency.
When sourcing ASTM A252 Grade 3 pipe, it’s crucial to communicate all necessary properties clearly to ensure that the delivered product meets specific project requirements. This includes detailing dimensional tolerances, mechanical properties, and any additional specifications such as Charpy impact testing for applications in low-temperature environments. Such testing is vital for ensuring that the material can withstand the operational conditions it will face, thus preventing failures and enhancing safety.
Furthermore, proper material traceability is essential in the procurement process. Suppliers like LONGMA GROUP provide comprehensive documentation, including mill test reports, which verify that the materials meet the specified standards. This documentation not only ensures compliance with industry regulations but also instills confidence in the quality and performance of the product. By establishing clear communication and expectations with suppliers, project managers can facilitate smoother procurement processes, leading to successful project outcomes. Ultimately, selecting a reliable supplier like LONGMA GROUP can make a significant difference in the quality and durability of the materials used in critical construction projects.
For those considering Chinese suppliers for their ASTM A252 Grade 3 pipe needs, companies like LONGMA GROUP invite inquiries and are eager to assist. They are recognized for their high-quality steel pipes, which comply with stringent international standards, ensuring both durability and reliability. LONGMA GROUP offers a diverse range of sizes and specifications, making them suitable for various applications in construction, infrastructure, and energy sectors. Interested parties can easily reach out via email at info@longma-group.com for detailed product information, competitive quotations, and dedicated technical support.
References
1. ASTM International. (2019). ASTM A252-19 Standard Specification for Welded and Seamless Steel Pipe Piles. ASTM International, West Conshohocken, PA.
2. American Institute of Steel Construction. (2017). Steel Construction Manual, 15th Edition. AISC, Chicago, IL.
3. Paikowsky, S. G. (2004). Load and Resistance Factor Design (LRFD) for Deep Foundations. NCHRP Report 507, Transportation Research Board, Washington, D.C.
4. Sabatini, P. J., Bachus, R. C., Mayne, P. W., Schneider, J. A., & Zettler, T. E. (2002). Geotechnical Engineering Circular No. 5: Evaluation of Soil and Rock Properties. FHWA-IF-02-034, Federal Highway Administration, Washington, D.C.
