Steel pipes play a crucial role in diverse industries, including construction and manufacturing. Among the common types are S275Jr pipe and S355JR pipes. Although they might appear similar, these pipes have unique characteristics that make them appropriate for various applications. This article will delve into the key differences between S275JR and S355JR pipes, highlighting differences in yield strength, chemical composition, mechanical properties, impact testing requirements, and their availability from suppliers. Understanding these distinctions is essential for selecting the right pipe for specific projects and ensuring optimal performance and safety in their applications.
|
|
|
Yield Strength
The yield strength of a material is a crucial factor in determining its performance under load. S275JR and S355JR pipes are named after their minimum yield strengths, which are 275 MPa and 355 MPa, respectively. This significant difference in yield strength has important implications for their use in various applications.
S355JR pipes, with their higher yield strength, can withstand greater stress before permanent deformation occurs. This makes them ideal for structures and applications that require higher load-bearing capacity. Examples include heavy machinery supports, high-rise building frameworks, and bridges. The increased strength of S355JR pipes often allows engineers to use smaller pipe diameters or thinner wall thicknesses while maintaining the required structural integrity, potentially leading to weight and cost savings in large projects.
On the other hand, S275JR pipes are suitable for applications with lower load requirements. They are commonly used in general construction, agricultural equipment, and less demanding industrial applications. While not as strong as S355JR pipes, S275JR pipes offer a good balance of strength and cost-effectiveness for many projects.
Chemical Composition
The chemical composition of steel plays a crucial role in determining its properties. The main difference between S275JR and S355JR pipes lies in their carbon content. Carbon is a key element in steel, as it significantly influences the material's strength and hardness.
S355JR pipes have a higher maximum carbon content of 0.27%, compared to 0.24% for S275JR pipes. This increased carbon content contributes to the higher yield strength of S355JR pipes. The additional carbon allows for the formation of more carbides within the steel's microstructure, which enhances its strength and hardness.
However, it's important to note that the chemical composition of these steels involves more than just carbon. Both S275JR and S355JR pipes also contain other alloying elements such as manganese, silicon, phosphorus, and sulfur. The precise balance of these elements is carefully controlled to achieve the desired mechanical properties while maintaining good weldability and formability.
Mechanical Properties
The mechanical properties of steel pipes are critical factors in determining their performance and suitability for various applications. In addition to yield strength, tensile strength is another important mechanical property that differs between S275JR and S355JR pipes.
Tensile strength represents the maximum stress that a material can withstand while being stretched or pulled before failing or breaking. S355JR pipes, with their tensile strength range of 470-630 MPa, offer superior performance in this aspect compared to S275JR pipes, which have a tensile strength range of 410-560 MPa.
This higher tensile strength of S355JR pipes translates to greater resistance against deformation and failure under tension. It makes them particularly suitable for applications where the material might be subjected to significant pulling forces, such as in crane booms, suspension bridges, or high-pressure pipelines.
However, it's worth noting that higher strength doesn't always mean better performance in all situations. The choice between S275JR and S355JR pipes should be based on the specific requirements of the application, considering factors such as load conditions, environmental factors, and cost-effectiveness.
Impact Testing
Impact testing is a crucial quality control measure for steel pipes, especially those used in applications where they might be subjected to sudden loads or low temperatures. Both S275JR and S355JR pipes undergo impact testing to ensure they meet the required standards for toughness and resistance to brittle fracture.
The impact test, often referred to as the Charpy V-notch test, measures the amount of energy absorbed by the material during high-speed fracture. For both S275JR and S355JR pipes, this test is typically conducted at 20°C (room temperature), and the minimum impact energy requirement is 27 Joules.
This requirement ensures that both types of pipes maintain adequate toughness and ductility at room temperature, reducing the risk of brittle failure under sudden impact loads. The 'JR' designation in both s275jr pipe and S355JR indicates that these steels are suitable for applications where impact resistance at room temperature is sufficient.
It's important to note that while both types of pipes have the same minimum impact energy requirement, S355JR pipes, due to their higher strength, may exhibit slightly different behavior in impact tests. In some cases, they might even surpass the minimum requirement, offering an extra margin of safety in critical applications.
S275JR Pipe Supplier

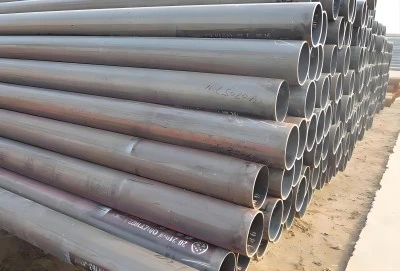

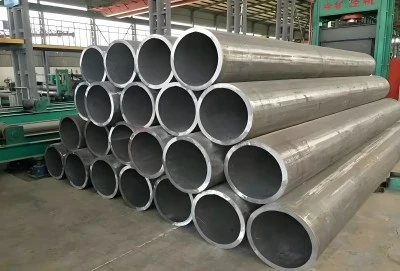

When it comes to sourcing S275JR pipes, it's crucial to work with reputable suppliers who can provide high-quality products that meet industry standards. LONGMA GROUP is one such supplier, maintaining a substantial stock of S275JR pipes to meet various project needs.
Having a reliable supplier is essential for ensuring consistent quality and timely delivery of materials. While LONGMA GROUP offers S275JR pipes, it's always advisable to compare offerings from multiple suppliers to find the best fit for your specific project requirements. Factors to consider include not only stock availability but also pricing, delivery times, quality certifications, and after-sales support.
LONGMA GROUP offers a substantial stock of S275JR pipes, with a current inventory ranging from 100 to 200 tons. Our extensive stock ensures that we can promptly meet your project demands, whether for large-scale construction or specialized engineering applications. We pride ourselves on providing high-quality S275JR pipes that comply with industry standards and specifications. If you are in the process of selecting a manufacturer for your pipe needs, we invite you to reach out to us. For inquiries and further information, please contact us at info@longma-group.com.
