When it comes to oil and gas transportation, selecting the right API 5L line pipe grade is crucial for ensuring safety, efficiency, and longevity of your pipeline system. API 5L line pipes are widely used in the petroleum industry for transporting crude oil, natural gas, and other petrochemical products. But with various grades available, how do you determine which one is best suited for your specific project? In this comprehensive guide, we'll explore the key factors to consider when choosing the appropriate API 5L line pipe grade, focusing on operating conditions, transportation media, and pipeline size.
|
|
|
Operating Conditions
The operating conditions of your pipeline system play a significant role in determining the most suitable API 5L line pipe grade. These conditions include factors such as pressure, temperature, and environmental considerations.
Pressure Requirements: One of the primary considerations when selecting an API 5L line pipe grade is the operating pressure of your pipeline system. Different grades offer varying levels of strength and pressure resistance. For instance, higher-grade pipes like X70 or X80 are designed to withstand greater pressures compared to lower grades like X42 or X52. It's essential to choose a grade that can safely handle the maximum operating pressure of your system with an appropriate safety factor.
Temperature Considerations: The operating temperature of your pipeline also influences the choice of API 5L line pipe grade. Some grades are better suited for extreme temperature conditions, whether it's high-temperature environments in desert regions or low-temperature applications in arctic areas. For example, API 5L X65 pipes with special heat treatments might be more suitable for high-temperature operations, while low-temperature-resistant grades could be preferable for cryogenic applications.
Environmental Factors: The surrounding environment where the pipeline will be installed can impact the selection of the API 5L line pipe grade. Factors such as soil corrosivity, presence of hydrogen sulfide (H2S), and exposure to seawater or other corrosive elements should be taken into account. For instance, in sour gas environments with high H2S content, you might opt for grades with enhanced resistance to sulfide stress cracking (SSC), such as API 5L X65 or X70 with special heat treatments and chemical compositions.
By carefully evaluating these operating conditions, you can narrow down the range of suitable API 5L line pipe grades for your project, ensuring optimal performance and longevity of your pipeline system.
Transportation Media
The type of fluid or gas being transported through the pipeline is another critical factor in selecting the appropriate API 5L line pipe grade. Different media have varying chemical properties and corrosiveness, which can affect the longevity and performance of the pipeline.
Crude Oil: When transporting crude oil, the API 5L line pipe grade should be chosen based on the oil's properties, such as its sulfur content and viscosity. For sweet crude oil with low sulfur content, standard grades like X52 or X60 might be suitable. However, for sour crude oil with higher sulfur content, you may need to consider grades with enhanced corrosion resistance, such as X65 or X70 with special coatings or linings.
Natural Gas: The composition of natural gas can vary significantly, affecting the choice of API 5L line pipe grade. For dry natural gas with low corrosive components, standard grades like X52 or X60 may suffice. However, if the gas contains significant amounts of CO2, H2S, or other corrosive elements, higher-grade pipes with enhanced corrosion resistance, such as X65 or X70 with special heat treatments, might be necessary.
Refined Products: When transporting refined petroleum products like gasoline or diesel, the API 5L line pipe grade should be selected based on the specific characteristics of the product. Some refined products may be more corrosive or have different temperature requirements, which could influence the choice of pipe grade and any necessary internal coatings or linings.
Water: While not as common in the oil and gas industry, some pipelines may be used to transport water, either for injection purposes or as part of a processing facility. In these cases, the water's mineral content and corrosiveness should be considered when selecting the API 5L line pipe grade.
By carefully considering the properties of the transportation media, you can ensure that the chosen API 5L line pipe grade will provide adequate resistance to corrosion and other potential issues, maximizing the lifespan and safety of your pipeline system.
Pipeline Size
The size of your pipeline is another crucial factor in determining the appropriate API 5L line pipe grade. The diameter and wall thickness of the pipe affect its strength, pressure-bearing capacity, and overall performance.
Diameter Considerations: API 5L line pipes are available in a wide range of diameters, typically from 4.5 inches to 80 inches. The choice of diameter depends on factors such as the required flow rate, pressure drop considerations, and terrain constraints. Larger diameter pipes can generally handle higher flow rates but may require higher-grade materials to maintain structural integrity under pressure.
Wall Thickness: The wall thickness of the API 5L line pipe is directly related to its pressure-bearing capacity. Thicker walls provide greater strength and resistance to internal pressure, but they also increase the weight and cost of the pipeline. When selecting the appropriate grade and wall thickness, it's essential to balance these factors against the operating pressure requirements of your system.
Length and Weight: The overall length of your pipeline and the weight of the pipes can influence the choice of API 5L line pipe grade. Longer pipelines may require higher-grade materials to ensure consistent performance over extended distances. Additionally, the weight of the pipes affects transportation and installation costs, which should be factored into the decision-making process.
Expansion and Contraction: The size of the pipeline also affects its thermal expansion and contraction characteristics. Larger diameter pipes may experience more significant dimensional changes due to temperature fluctuations. This factor should be considered when selecting the API 5L line pipe grade, especially for pipelines operating in environments with extreme temperature variations.
By carefully evaluating the size requirements of your pipeline project, you can select an API 5L line pipe grade that offers the optimal balance of strength, performance, and cost-effectiveness.

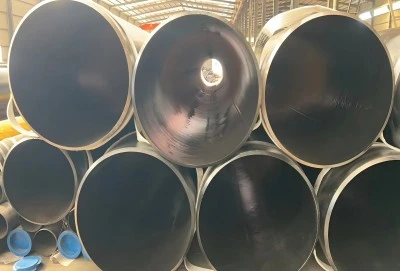

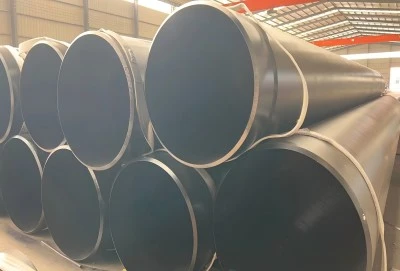

API 5L Line Pipe For Sale
Choosing the appropriate API 5L line pipe grade is a complex decision that requires careful consideration of multiple factors, including operating conditions, transportation media, and pipeline size. By thoroughly evaluating these aspects, you can ensure that your pipeline system is built with the most suitable materials, promoting safety, efficiency, and longevity.
