When it comes to oil and gas transportation, choosing the right size of API 5L line pipe is crucial for ensuring efficient and safe operations. API 5L line pipes are widely used in the petroleum industry for transporting oil, gas, and other fluids over long distances. Determining the optimal size for these pipes involves careful consideration of various factors, including flow requirements, pressure ratings, and industry standards.
|
|
|

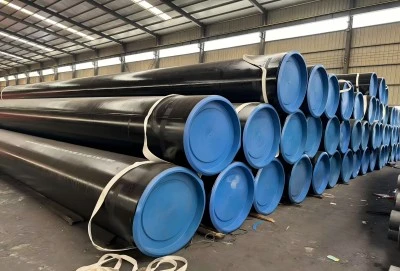

API 5L Line Pipe Specifications
API 5L line pipes are available in several grades, including A, B, X42, X52, X60, and X70, each offering specific strength properties to meet varying operational demands. Lower grades like A and B are suitable for moderate-pressure systems and less corrosive environments. In contrast, higher grades like X60 and X70 are designed for more demanding applications, offering increased tensile strength and enhanced resistance to external stress, high-pressure conditions, and corrosive environments such as deep-water or offshore pipelines.
API 5L line pipes come in a wide range of sizes, from small-diameter pipes with an outer diameter of just 0.405 inches (10.3 mm) to large-diameter pipes reaching up to 80 inches (2,032 mm). The size selection is based on factors like the required flow rate, pressure, and the specific layout of the pipeline system. Larger diameter pipes are typically used for long-distance transportation and high-flow applications, while smaller pipes are suitable for localized systems or smaller flow capacities.
The wall thickness of API 5L line pipes is a critical factor in determining their ability to handle internal pressure and external forces. Thicker walls provide greater resistance to internal pressure, making the pipes suitable for high-pressure applications. In contrast, thinner-walled pipes may be appropriate for lower-pressure systems. The pipe’s grade, combined with its wall thickness, defines its pressure rating. This ensures that the pipe meets the specific demands of its operating environment, from land-based pipelines to offshore and subsea installations where higher pressures are common.
Determine Flow Requirements
The first step in sizing your API 5L line pipe is to determine the flow requirements of your system. This involves calculating the volume of fluid that needs to be transported through the pipeline over a given period. The flow rate is typically measured in barrels per day (bpd) for oil or cubic feet per day (cfpd) for natural gas.
To accurately determine your flow requirements, consider the following factors:
- Production rate: The volume of oil or gas being extracted from the source.
- Transportation distance: The length of the pipeline from the source to the destination.
- Operating pressure: The pressure at which the fluid will be transported.
- Fluid properties: Viscosity, density, and temperature of the fluid being transported.
- Terrain: The topography of the land through which the pipeline will run.
Once you have a clear understanding of your flow requirements, you can move on to calculating the required pipe diameter.
Calculate the Required Pipe Diameter
Calculating the required pipe diameter involves using fluid dynamics principles and industry-standard formulas. The most commonly used equation for determining pipe size is the Darcy-Weisbach equation, which takes into account factors such as flow rate, fluid properties, and pressure drop.
The basic formula for calculating pipe diameter is:
D = √((4 * Q) / (π * v))
Where:
- D = Pipe diameter
- Q = Flow rate
- v = Fluid velocity
However, this is a simplified version, and in practice, you'll need to consider additional factors such as friction losses, elevation changes, and pressure requirements. It's often beneficial to use specialized pipeline design software or consult with experienced engineers to perform these calculations accurately.
When calculating the required pipe diameter, keep in mind that larger diameters generally result in lower pressure drops and reduced pumping costs, but they also increase the initial investment in materials. Conversely, smaller diameters may reduce upfront costs but can lead to higher operating expenses due to increased pumping requirements.
Consider Standardized Sizes and Industry Norms
After calculating the theoretical pipe diameter, it's important to consider standardized sizes and industry norms. API 5L line pipes are manufactured in specific diameter increments, and choosing a standard size close to your calculated diameter is often more practical and cost-effective.
Common API 5L line pipe sizes include:
- 4 inches (101.6 mm)
- 6 inches (152.4 mm)
- 8 inches (203.2 mm)
- 10 inches (254.0 mm)
- 12 inches (304.8 mm)
- 16 inches (406.4 mm)
- 20 inches (508.0 mm)
- 24 inches (609.6 mm)
- 30 inches (762.0 mm)
- 36 inches (914.4 mm)
When selecting a standardized size, it's generally recommended to choose the next size up from your calculated diameter. This provides a safety margin and allows for potential increases in flow requirements in the future.
Additionally, consider industry norms and practices specific to your region or application. Some areas may have preferences for certain pipe sizes based on local regulations, available equipment, or historical usage patterns.

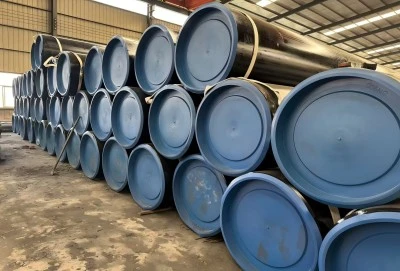

API 5L Line Pipe For Sale
Determining the optimal size for API 5L line pipe is a critical step in ensuring the efficiency and longevity of your pipeline system. By carefully considering flow requirements, calculating the required pipe diameter, and taking into account standardized sizes and industry norms, you can make an informed decision that balances performance, cost, and long-term reliability.
Remember that while these guidelines provide a solid foundation for selecting the right API 5L line pipe size, complex projects may require additional considerations and expert input. It's always advisable to consult with experienced engineers or pipeline specialists to ensure your chosen pipe size meets all necessary safety and performance standards.
LONGMA GROUP adheres strictly to international quality standards and certifications, including API, ISO, and ASTM. Our state-of-the-art manufacturing facilities are equipped with advanced testing equipment and processes to ensure the highest quality and reliability of our products. If you are choosing your API 5L line pipe manufacturers, welcome to contact LONGMA GROUP at info@longma-group.com.
