Submerged arc welding (SAW) is a highly efficient and versatile welding process that has revolutionized the manufacturing of large-scale steel structures, including double submerged arc welded pipes. This advanced welding technique offers numerous advantages in terms of weld quality, productivity, and cost-effectiveness. In this comprehensive guide, we'll explore the key benefits of submerged arc welding, its working principles, and how it enhances weld strength and efficiency in pipe manufacturing.
|
|
|
What is the working principle of submerged arc welding?
Submerged arc welding is a unique welding process that involves the formation of an arc between a continuously-fed electrode and the workpiece. The arc and the weld pool are submerged under a blanket of granular flux, which gives the process its name. This flux serves multiple purposes, including shielding the weld from atmospheric contamination, stabilizing the arc, and providing alloying elements to the weld metal.
The basic working principle of submerged arc welding can be broken down into several steps:
- A continuous wire electrode is fed through a welding head and into the weld joint.
- Granular flux is poured ahead of the welding arc, completely covering the weld area.
- An electric arc is struck between the electrode and the workpiece, generating intense heat.
- The heat melts both the electrode and the base metal, forming a weld pool beneath the flux layer.
- As the welding progresses, the molten flux floats to the top of the weld pool, protecting it from atmospheric contamination and cooling to form a slag layer.
- The solidified weld metal forms a strong joint between the workpieces.

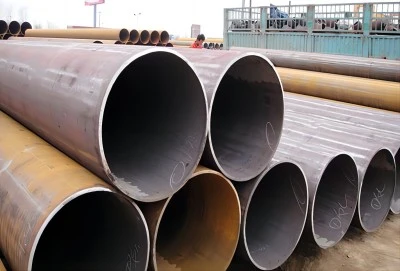

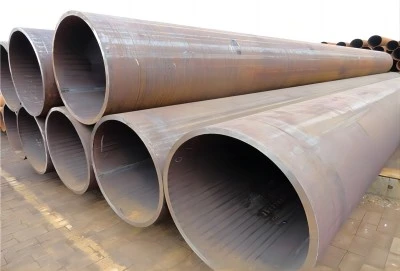

In the case of double submerged arc welded pipes, this process is typically performed on both the inside and outside of the pipe seam, ensuring complete penetration and superior weld quality.
How does submerged arc welding improve weld quality and strength?
Submerged arc welding offers several key advantages that contribute to improved weld quality and strength, particularly in the production of double submerged arc welded pipes:
1. Superior Protection from Atmospheric Contamination
The granular flux used in submerged arc welding provides excellent protection for the weld pool from atmospheric gases. This protection is crucial in preventing the formation of oxides and nitrides, which can weaken the weld. As a result, submerged arc welds typically exhibit lower porosity and fewer inclusions compared to other welding methods, leading to stronger and more durable joints.
2. Controlled Heat Input
The flux blanket in submerged arc welding acts as an insulator, allowing for better control of heat input into the weld. This controlled heating and cooling process helps to minimize distortion and residual stresses in the welded material. For double submerged arc welded pipes, this means improved dimensional stability and reduced risk of warping or cracking during and after the welding process.
3. Deep Penetration
Submerged arc welding is capable of achieving deep weld penetration, which is particularly beneficial for thick-walled pipes. The high current densities used in this process, combined with the insulating effect of the flux, allow the arc to penetrate deeply into the joint. This deep penetration ensures a strong, full-fusion weld across the entire thickness of the pipe wall, enhancing the overall structural integrity of the welded joint.
4. Consistent Weld Quality
The automated nature of submerged arc welding contributes to highly consistent weld quality. Once the welding parameters are set, the process can produce uniform welds with minimal variation. This consistency is crucial for double submerged arc welded pipes, where weld integrity is essential for maintaining pressure resistance and preventing leaks.
5. Refined Weld Metal Composition
The flux used in submerged arc welding can be formulated to introduce alloying elements into the weld metal. This allows for fine-tuning of the weld metal composition, potentially enhancing properties such as strength, toughness, and corrosion resistance. For double submerged arc welded pipes intended for demanding applications, this ability to optimize weld metal composition can be a significant advantage.
What are the efficiency and productivity benefits of submerged arc welding?
Submerged arc welding offers substantial efficiency and productivity benefits, making it a preferred choice for large-scale pipe manufacturing operations:
1. High Deposition Rates
Submerged arc welding is capable of achieving very high deposition rates, often exceeding 45 kg/h (100 lb/h) for single-wire setups, and even higher for multi-wire configurations. This high deposition rate translates to faster welding speeds and increased productivity in the manufacture of double submerged arc welded pipes.
2. Continuous Operation
Unlike many other welding processes, submerged arc welding can operate continuously for extended periods. The constant feed of electrode wire and flux allows for long, uninterrupted welds, which is particularly advantageous when producing large-diameter pipes with lengthy seams.
3. Minimal Operator Skill Requirements
The automated nature of submerged arc welding reduces the reliance on highly skilled welders. Once the welding parameters are set and the equipment is properly aligned, the process can be monitored by operators with relatively less specialized training. This can help to address skilled labor shortages and reduce labor costs in pipe manufacturing operations.
4. Reduced Need for Post-Weld Cleaning
The flux used in submerged arc welding forms a protective slag over the weld bead. This slag is typically easy to remove and often detaches on its own as the weld cools. As a result, double submerged arc welded pipes require minimal post-weld cleaning, saving time and reducing processing costs.
5. Improved Working Conditions
Submerged arc welding produces minimal fumes and no visible arc flash, creating a safer and more comfortable working environment for operators. This can lead to improved worker satisfaction, reduced fatigue, and potentially lower turnover rates in pipe manufacturing facilities.
In conclusion, submerged arc welding offers a powerful combination of benefits for the production of double submerged arc welded pipes. Its ability to produce high-quality, strong welds efficiently and consistently makes it an invaluable process in the pipe manufacturing industry. By leveraging the advantages of submerged arc welding, manufacturers can produce pipes that meet the most demanding quality standards while optimizing their production efficiency.
