When it comes to selecting the right materials for your piping projects, understanding the chemical composition of different pipe grades is crucial. One of the most widely used pipe specifications in various industries is the ASTM A53 Gr B pipe. This versatile carbon steel pipe is known for its excellent mechanical properties and corrosion resistance, making it a popular choice for many applications. In this comprehensive guide, we'll delve into the chemical elements that make up ASTM A53 Gr B pipes and explore how these components contribute to their outstanding performance.
|
|
|
Composition: key elements in ASTM A53 Gr B pipes
ASTM A53 Grade B pipes are composed of a carefully balanced mixture of chemical elements, each playing a specific role in enhancing the material's properties. The primary elements found in these pipes include:
- Carbon (C)
- Manganese (Mn)
- Phosphorus (P)
- Sulfur (S)
- Copper (Cu)
- Nickel (Ni)
- Chromium (Cr)
- Molybdenum (Mo)
- Vanadium (V)
These elements are combined in precise proportions to create a material that offers an optimal balance of strength, ductility, and corrosion resistance. The exact percentages of each element can vary slightly within specified ranges, but they must adhere to the standards set by the American Society for Testing and Materials (ASTM).
Let's take a closer look at the typical composition ranges for ASTM A53 Gr B pipes:
- Carbon: 0.30% max
- Manganese: 1.20% max
- Phosphorus: 0.05% max
- Sulfur: 0.045% max
The remaining elements, such as copper, nickel, chromium, molybdenum, and vanadium, are present in smaller quantities but still play crucial roles in determining the pipe's overall performance.
The role of carbon, manganese, and other elements in ASTM A53 Gr B pipes
Each chemical element in the ASTM A53 Gr B pipe composition serves a specific purpose, contributing to the material's unique properties. Let's explore the roles of these key elements:
Carbon (C)
Carbon is the primary alloying element in steel and plays a crucial role in determining its strength and hardness. In ASTM A53 Gr B pipes, the carbon content is carefully controlled to achieve the desired balance between strength and ductility. A higher carbon content increases the pipe's strength and hardness but can also make it more brittle. The maximum carbon content of 0.30% in ASTM A53 Gr B pipes ensures a good combination of strength and formability.
Manganese (Mn)
Manganese is another essential element in the composition of ASTM A53 Gr B pipes. It serves multiple purposes:
- Deoxidation: Manganese helps remove oxygen from the molten steel during production, improving the material's quality.
- Strength enhancement: It contributes to the overall strength of the pipe without significantly reducing ductility.
- Hardenability: Manganese increases the steel's ability to harden during heat treatment.
- Sulfur control: It combines with sulfur to form manganese sulfide, which helps prevent the formation of iron sulfide, a compound that can cause brittleness.
Phosphorus (P) and Sulfur (S)
Both phosphorus and sulfur are considered impurities in steel, and their contents are strictly limited in ASTM A53 Gr B pipes. Phosphorus can increase strength and hardness but can also lead to brittleness if present in excessive amounts. Sulfur, when combined with iron, can form iron sulfide, which can cause hot shortness (brittleness at high temperatures). The low maximum limits for these elements (0.05% for phosphorus and 0.045% for sulfur) help ensure the pipe's quality and performance.
Copper (Cu), Nickel (Ni), and Chromium (Cr)
These elements are present in smaller quantities but contribute to the pipe's corrosion resistance. Copper and nickel enhance resistance to atmospheric corrosion, while chromium forms a protective oxide layer on the surface, improving overall corrosion resistance.
Molybdenum (Mo) and Vanadium (V)
Molybdenum and vanadium are strong carbide-forming elements that contribute to the pipe's strength and toughness. They help refine the grain structure of the steel, improving its mechanical properties.
How the chemical composition affects the performance of ASTM A53 Gr B pipes
The carefully balanced chemical composition of ASTM A53 Gr B pipes directly influences their performance characteristics, making them suitable for a wide range of applications. Let's examine how the chemical elements contribute to various aspects of the pipe's performance:
1.Strength and Ductility
The combination of carbon, manganese, and other alloying elements results in a material with excellent strength properties. ASTM A53 Gr B pipes typically have a minimum yield strength of 35,000 psi (240 MPa) and a minimum tensile strength of 60,000 psi (415 MPa). This strength is achieved while maintaining good ductility, allowing the pipes to withstand various loads and pressures without failure.
2.Weldability
The controlled carbon content and balanced composition of ASTM A53 Gr B pipes contribute to their excellent weldability. This characteristic is crucial for many applications where pipes need to be joined or modified on-site. The low carbon equivalent (CE) of these pipes ensures that they can be welded without the need for preheating or post-weld heat treatment in most cases, simplifying installation and reducing costs.
3.Corrosion Resistance
While ASTM A53 Gr B pipes are not considered highly corrosion-resistant compared to stainless steel pipes, their chemical composition does provide a moderate level of protection against corrosion. The presence of elements like copper, nickel, and chromium contributes to the formation of a protective oxide layer on the pipe's surface, slowing down the corrosion process in many environments.
4.Temperature Performance
The balanced composition of ASTM A53 Gr B pipes allows them to maintain their mechanical properties across a wide range of temperatures. They are suitable for use in both low and moderate temperature applications, typically ranging from -20°F to 650°F (-29°C to 343°C). This versatility makes them ideal for various industrial processes and environments.
5.Formability
Despite their high strength, ASTM A53 Gr B pipes maintain good formability due to their carefully controlled chemical composition. This characteristic allows for bending, flaring, and other forming operations to be performed on the pipes without compromising their structural integrity.
6.Machinability
The chemical composition of ASTM A53 Gr B pipes also influences their machinability. While not as easily machinable as some low-carbon steels, these pipes can still be cut, threaded, and otherwise machined with standard tools and techniques. This property is essential for customizing pipes for specific applications and installations.
In conclusion, the chemical elements present in ASTM A53 Gr B pipes work together to create a material that offers an excellent balance of strength, ductility, weldability, and corrosion resistance. This unique combination of properties makes these pipes suitable for a wide range of applications, including:
- Oil and gas pipelines
- Water and sewage systems
- Fire protection systems
- Structural supports
- General-purpose piping in various industries
Understanding the chemical composition of ASTM A53 Gr B pipes is crucial for engineers, contractors, and project managers when selecting materials for their piping projects. By appreciating how each element contributes to the overall performance of the pipe, you can make informed decisions that ensure the longevity, safety, and efficiency of your piping systems.

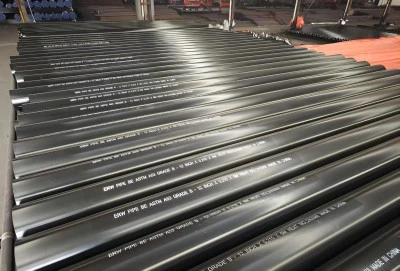

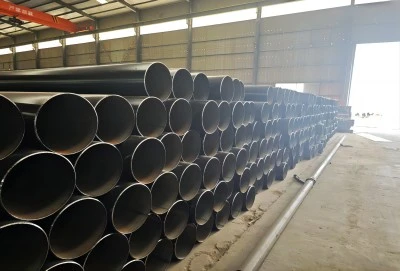

Contact Longma for ASTM A53 Gr.B Pipe
