When it comes to steel pipes, precision and quality are paramount. ASTM A53 steel pipe is a widely used standard in various industries, known for its reliability and versatility. However, to ensure optimal performance and safety, it's crucial to understand the tolerances associated with these pipes. In this comprehensive guide, we'll delve into the world of ASTM A53 pipe tolerances, covering dimensional, length, and end finish aspects. Whether you're an engineer, contractor, or simply curious about steel pipe specifications, this article will provide valuable insights into the exacting standards that govern ASTM A53 steel pipe production.
|
|
|
Dimensional Tolerances
Dimensional tolerances are critical in ensuring that ASTM A53 steel pipes meet the required specifications for various applications. These tolerances cover several aspects of the pipe's physical characteristics, including outside diameter, wall thickness, and straightness.
Outside Diameter (OD) Tolerance: The OD tolerance for ASTM A53 steel pipe varies depending on the pipe size and manufacturing method. For example, for welded pipes up to NPS 1-1/2, the tolerance is ±1/64 inch (0.4 mm) or ±0.5% of the specified OD, whichever is greater. For larger sizes, the tolerance increases slightly. Seamless pipes have similar tolerances, with slight variations based on the manufacturing process.
Wall Thickness Tolerance: Wall thickness is crucial for the pipe's strength and pressure-bearing capacity. For ASTM A53 steel pipe, the wall thickness tolerance is typically -12.5% of the nominal wall thickness. This means that the actual wall thickness can be up to 12.5% thinner than specified, but it cannot exceed the nominal thickness. This tolerance ensures that the pipe maintains its structural integrity while allowing for minor manufacturing variations.
Straightness Tolerance: ASTM A53 steel pipes must also meet straightness requirements. The maximum deviation from a straight line along the pipe axis should not exceed 0.030 inch multiplied by the number of feet of total length divided by 5. This tolerance ensures that the pipes can be properly installed and aligned in various applications.
It's worth noting that these dimensional tolerances are subject to change based on the specific grade and type of ASTM A53 steel pipe. Always refer to the most recent ASTM A53 standard for the most accurate and up-to-date information.
Length Tolerances
Length tolerances are another crucial aspect of ASTM A53 steel pipe specifications. These tolerances ensure that the pipes can be accurately cut and installed in various applications, from plumbing systems to structural supports.
Standard Length: ASTM A53 steel pipes are typically supplied in random lengths, usually ranging from 16 to 22 feet. However, specific lengths can be ordered based on project requirements. The standard length tolerance for these pipes is ±1 inch (25.4 mm) for lengths up to 30 feet. For pipes longer than 30 feet, an additional tolerance of ±1/8 inch (3.2 mm) is allowed for each 10 feet of length or fraction thereof.
Cut Length: When pipes are ordered to specific cut lengths, tighter tolerances apply. For cut lengths up to 24 feet, the tolerance is typically ±1/4 inch (6.4 mm). For lengths over 24 feet, an additional tolerance of ±1/8 inch (3.2 mm) is allowed for each 10 feet of length or fraction thereof.
Minimum Average Length: In cases where pipes are ordered in random lengths, a minimum average length may be specified. This ensures that the overall footage of pipe delivered meets the project requirements. The tolerance for minimum average length is typically -5% of the specified length.
It's important to note that these length tolerances can be adjusted based on specific agreements between the manufacturer and the purchaser. Custom length tolerances may be necessary for certain applications or projects that require precise fitment.
End Finish Tolerances
The end finish of ASTM A53 steel pipe is crucial for proper joining and installation. Depending on the application, pipes may require specific end finishes to ensure compatibility with fittings, valves, or other components. ASTM A53 specifies several end finish options and their associated tolerances.
Plain Ends: Plain end pipes are the most common and versatile option. The tolerance for plain ends is typically ±1/32 inch (0.8 mm) from a square cut. This slight variation allows for minor imperfections while ensuring that the pipe ends can be properly prepared for welding or threading.
Threaded Ends: For pipes with threaded ends, the tolerances are more stringent to ensure proper engagement with fittings. The thread length and taper must conform to ASME B1.20.1 specifications. The tolerance for thread length is typically ±1 thread, while the taper tolerance is ±1 turn from basic position when measured with a standard gauge.
Beveled Ends: Beveled ends are commonly used for welded joints. The standard bevel angle for ASTM A53 steel pipe is 30° ±5° from the pipe axis. The tolerance for the width of the root face (the flat surface at the end of the bevel) is typically ±1/32 inch (0.8 mm).
Groove Ends: For pipes with groove ends designed for mechanical coupling systems, the tolerances are specified by the coupling manufacturer. These tolerances ensure proper fit and sealing of the coupling system.
It's crucial to communicate any specific end finish requirements when ordering ASTM A53 steel pipe to ensure that the pipes meet the necessary tolerances for your application.

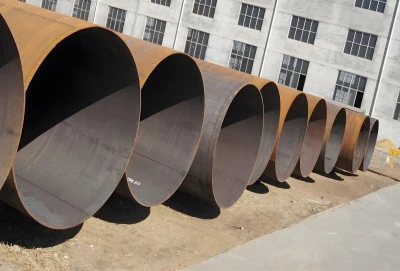

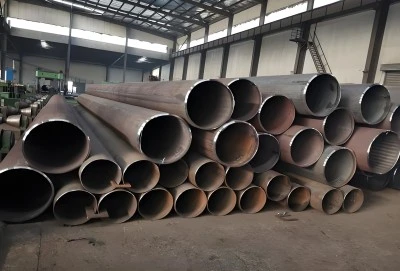

Longma Group ASTM A53 Steel Pipe
Understanding the tolerances for ASTM A53 steel pipe is essential for ensuring the quality, reliability, and performance of your piping systems. From dimensional precision to length accuracy and end finish specifications, these tolerances play a crucial role in the proper installation and function of steel pipes across various industries.
