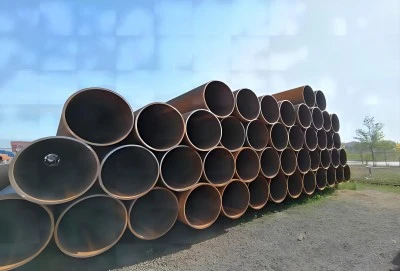

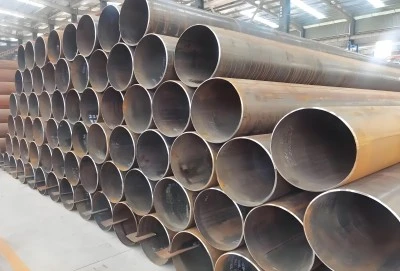

The API 5L X56 pipe is a high-quality line pipe widely used in the oil and gas industry for the transmission of petroleum products and natural gas. These pipes are manufactured according to the American Petroleum Institute (API) specifications and are known for their excellent mechanical properties, dimensional accuracy, and reliability. This comprehensive guide explores the key aspects of the product, including its types, manufacturing processes, specifications, and testing requirements. Moreover, the proper installation and maintenance of X56 pipes are of great significance. Specialized techniques are required to ensure the integrity of the pipeline system during installation. In terms of maintenance, regular inspections and timely repairs are essential to prevent potential issues such as corrosion and leakage, thereby prolonging the service life of the pipes and guaranteeing the safe operation of the oil and gas transmission process.
API 5L X56 Pipe Types
API 5L X56 pipes are classified into two main product specification levels (PSL), each designed to meet different service requirements and operating conditions. Understanding these classifications is crucial for selecting the right pipe for specific applications.
PSL1: Pipes In Normal Delivery Conditions
PSL1 represents the standard specification level for the API 5L X56 pipe. These pipes are typically delivered in the as-rolled condition, meaning they undergo basic hot rolling during manufacturing without additional heat treatment. PSL1 pipes are suitable for general pipeline applications where standard mechanical properties are sufficient. Key characteristics of PSL1 pipes include:
- Basic chemical composition requirements
- Standard mechanical property specifications
- Regular inspection and testing procedures Cost-effective solution for general applications
- Widely available in standard sizes and dimensions
PSL2: Pipes In Different Delivery Conditions
PSL2 pipes represent a higher specification level with more stringent requirements and additional delivery conditions. These pipes undergo various heat treatment processes to enhance their mechanical properties and performance characteristics. The different delivery conditions include:
- Normalized (N): These pipes undergo a normalizing heat treatment process where they are heated above the critical temperature and then cooled in air. This process refines the grain structure and improves toughness.
- Thermomechanical Rolled (M): This process combines controlled rolling and cooling to achieve specific mechanical properties. It offers improved strength and toughness while maintaining good weldability.
- Quenched and Tempered (Q): Pipes are heated to austenizing temperature, rapidly cooled (quenched), and then reheated to a lower temperature (tempered). This process provides optimal strength and toughness combinations.
Manufacturing Type
API 5L X56 pipes can be manufactured using several different processes, each with its own advantages and applications. The main manufacturing methods include:
- Seamless (SMLS): These pipes are produced by hot forming a solid round billet into a hollow tube without any welding. The process involves piercing, rolling, and sizing operations. Seamless pipes offer superior pressure resistance and uniform mechanical properties.
- Electric Resistance Welded (ERW): In this process, the steel strip is cold-formed into a tubular shape and welded along the longitudinal seam using electric resistance welding. ERW pipes are cost-effective and widely used for moderate-pressure applications.
- Double Submerged Arc Welded (DSAW): This process involves forming steel plates into pipe shapes and welding both inside and outside using the submerged arc welding process. DSAW pipes are suitable for large diameter applications requiring high strength and reliability.
API 5L X56 Pipe Specification
API 5L X56 pipe must meet specific requirements regarding chemical composition, mechanical properties, and dimensional tolerances. The key specifications include:
Chemical Composition:
- Carbon (C): 0.26% max for PSL1, 0.24% max for PSL2
- Manganese (Mn): 1.40% max
- Phosphorus (P): 0.030% max
- Sulfur (S): 0.030% max
Mechanical Properties:
- Minimum Yield Strength: 386 MPa (56,000 psi)
- Minimum Tensile Strength: 490 MPa (71,000 psi)
- Minimum Elongation: As per API 5L formula
Test Requirements
API 5L X56 pipes undergo rigorous testing to ensure compliance with specifications and quality standards. The main testing requirements include:
Mechanical Testing:
- Tensile testing to verify strength and elongation properties
- Impact testing (Charpy V-notch) for PSL2 pipes
- Hardness testing when specified
- Flattening test for welded pipes
- Bend test when required
Non-Destructive Testing:
- Ultrasonic testing for seamless pipes
- Radiographic testing for welded pipes
- Magnetic particle or liquid penetrant testing for weld seams
- Hydrostatic testing
Dimensional Testing:
- Outside diameter measurements
- Wall thickness verification
- Length measurements
- Straightness checks
API 5L X56 Pipe For Sale
LONGMA GROUP stands as a leading manufacturer and supplier of API 5L X56 pipe, offering comprehensive solutions for various industrial applications. Our commitment to quality and customer satisfaction is reflected in our state-of-the-art manufacturing facilities and rigorous quality control processes.
Our custom manufacturing capabilities include:
- Special dimensions and wall thicknesses
- Various end finishing options
- Custom coating applications
- Special testing requirements
- Specific packaging and marking requirements
LONGMA GROUP ensures complete traceability and documentation for all products, including:
- Material Test Certificates (MTC)
- Inspection reports
- Testing documentation
- Quality assurance certificates
If you are choosing your api 5l x56 pipe manufacturers, welcome to contact us at info@longma-group.com.
Our technical team is ready to assist you with:
- Product selection guidance
- Technical specifications
- Custom requirements
- Quotations and delivery schedules
- After-sales support
This article focuses on API 5L X56 pipes widely used in the oil and gas industry. It first highlights their high-quality nature and importance in petroleum and natural gas transmission. The pipe types are detailed, including PSL1 for normal delivery conditions with basic manufacturing and cost-effectiveness, and PSL2 with different heat - treated delivery conditions for enhanced properties. The manufacturing methods like seamless, electric resistance welded, and double submerged arc welded are explained with their respective features. Specifications regarding chemical composition, mechanical properties, and dimensional tolerances are provided. Rigorous testing requirements for mechanical, non - destructive, and dimensional aspects are also covered. LONGMA GROUP, a leading manufacturer, offers custom manufacturing, complete traceability, and strong technical support, inviting inquiries for API 5L X56 pipe needs.
