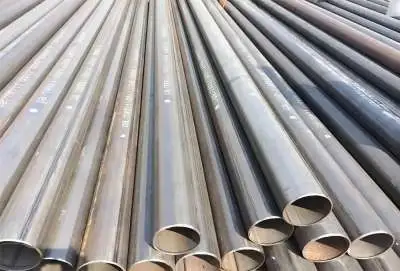

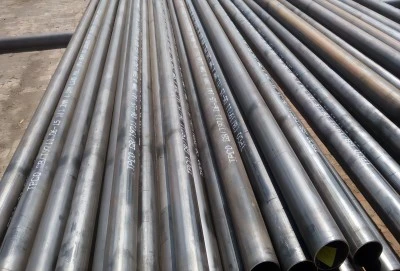

High frequency welded pipe (HFW pipe) is a type of steel pipe made using an advanced welding technique that employs high frequency electrical current. This pipe manufacturing method produces strong, reliable pipes used in many industries. HFW pipes are created by forming flat steel strips into a cylindrical shape and welding the seam where the edges meet using high frequency welding.
|
|
|
The basic principle of high frequency welding:
High frequency welding, the key process in high frequency welded pipe production, works based on electromagnetic induction and the skin effect. This innovative welding method uses high frequency alternating current to generate intense, localized heat at the edges of the steel strip, allowing for quick and efficient joining of the material.
The process begins by applying high frequency electrical current, typically between 100-500 kHz, to the edges of the steel strip as they come together at the welding point. Due to the skin effect, which causes an electrical current to flow mainly near a conductor's surface at high frequencies, the current concentrates along the edges of the steel. This concentrated current creates intense, localized heating that quickly brings the steel edges to their melting temperature. As the heated edges are pressed together by rollers, they fuse, forming a strong, continuous weld seam.
One major advantage of high frequency welding is its efficiency in heat generation. The rapid heating and cooling cycle keeps the heat-affected zone very narrow, resulting in a high-quality weld with minimal distortion of the surrounding metal. This contributes to the excellent strength and dimensional accuracy of high frequency welded pipe.
The high frequency welding process is carefully controlled and monitored to ensure consistent, high-quality welds. Factors like welding speed, frequency, power input, and pressure are precisely adjusted based on the pipe's material, diameter, and wall thickness. Advanced computer control systems and sensors maintain consistent welding parameters throughout production, ensuring uniform weld quality along the entire length of the pipe.
High Frequency Welded Pipe Features:
High strength-to-weight ratio: HFW pipes provide a good balance of strength and weight. This makes them ideal for applications where both structural integrity and weight considerations are important, such as in construction or transportation.
Smooth surface finish: The welding process creates a smooth, nearly seamless appearance on both the inside and outside of the pipe. This smooth surface reduces friction in fluid flow applications and makes it easier to apply coatings or linings to the pipe.
Cost-effectiveness: Compared to seamless pipes, HFW pipes can be produced more efficiently and at lower cost. This makes them an economical choice for many projects without sacrificing quality or performance.
Wide size range: HFW pipes can be manufactured in a broad range of diameters and wall thicknesses. Typical sizes range from 8 mm to 660 mm in diameter, with wall thicknesses from 0.5 mm to 25 mm. This versatility allows HFW pipes to be used in many different industries and applications.
High production efficiency: The continuous nature of the HFW process enables high production rates. This makes it possible to meet the demands of large-scale projects efficiently.
Good formability: high frequency welded pipe generally has good formability, allowing for secondary operations like bending or end-forming without compromising the integrity of the weld seam.
Corrosion resistance: When made with appropriate materials and surface treatments, HFW pipes can offer excellent corrosion resistance. This makes them suitable for use in challenging environments.
High Frequency Welded Pipe Application:
Water supply and irrigation: The corrosion resistance and smooth inner surface of HFW pipes make them ideal for water distribution networks and irrigation systems. They are commonly used in municipal water supply lines, agricultural irrigation systems, and industrial water transport applications. The pipes' durability and resistance to leaks help ensure reliable water delivery.
Construction and structural applications: HFW pipes find use in various construction projects, serving as structural elements in buildings, bridges, and scaffolding. Their high strength-to-weight ratio and dimensional accuracy contribute to their popularity in this sector. The pipes can be used as columns, beams, or support structures in both residential and commercial construction.
Automotive industry: The automotive sector utilizes HFW pipes in the production of exhaust systems, hydraulic lines, and structural components. The pipes' ability to withstand high temperatures and pressures makes them suitable for these demanding applications. They contribute to vehicle safety, performance, and efficiency.
Mechanical engineering: HFW pipes are employed in the manufacture of machinery components, hydraulic cylinders, and conveyor systems. Their consistent quality and good formability make them a preferred choice for these applications. The pipes can be easily integrated into complex mechanical systems.
Furniture and home appliances: The aesthetic appeal and strength of HFW pipes make them suitable for use in furniture design and the production of home appliances. They serve both functional and decorative purposes, allowing for innovative and durable product designs.
Renewable energy: In the growing renewable energy sector, HFW pipes are used in the construction of wind turbine towers and solar energy installations. They contribute to the development of sustainable energy infrastructure by providing strong, reliable support structures.
Mining and mineral processing: The durability and corrosion resistance of HFW pipes make them suitable for use in mining operations, including slurry transportation and processing plant piping systems. They can withstand the abrasive and corrosive conditions often found in mining environments.
HVAC systems: HFW pipes are utilized in heating, ventilation, and air conditioning systems. Their smooth inner surface facilitates efficient air and fluid flow, contributing to the overall performance of HVAC systems in buildings.
Agricultural equipment: The agricultural sector employs high frequency welded pipe in the manufacture of irrigation equipment, sprinkler systems, and various farm implements.
China High Frequency Welded Pipe:
LONGMA GROUP's Standard Products: API 5L, ASTM A53, ASTM A500, ASTM A252, ASTM A795...If you are choosing your High Frequency Welded Pipe manufacturers, welcome to contact us at info@longma-group.com.
