Steel tubing is an essential part in various modern applications, from development to car fabricating. ASTM A500 and ASTM A513 are two of the most frequently cited standards for the production of steel tubes. The material composition, manufacturing procedures, heat treatment, and size ranges of the two specifications are significantly different because they cater to distinct requirements and applications. In order to select the steel tube that best suits their requirements, engineers, designers, and customers need to be aware of these distinctions.
|
|
|
Material Composition:

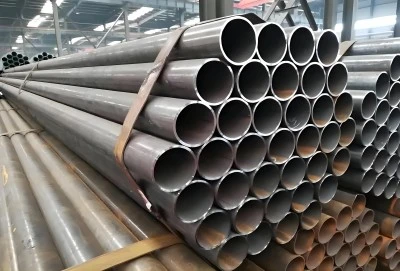

One of the essential distinctions between ASTM A500 and ASTM A513 steel tubes lies in their material creation. 1008-1015 steel is used to make ASTM A513 steel pipes. Iron makes up the majority of this kind of steel, with a small amount of carbon, usually between 0.08% and 0.15%.ASTM A513 Tube is ideal for applications that require precise control over dimensional tolerances and smooth surface finishes due to its low carbon content. This material organization considers simpler bowing and framing processes, making A513 tubing reasonable for mechanical applications like auto parts, furniture, and machines.

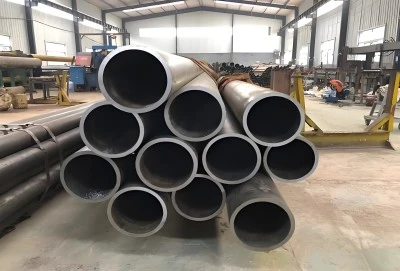

ASTM A500 steel tubes, on the other hand, are typically constructed from steels of a higher grade, such as A1085. These steels have more carbon and additional alloying elements like manganese and silicon. A500 steel has a carbon content of up to 0.26 percent, which makes it stronger and more durable than A513 steel. The addition of manganese and silicon further enhances the material's toughness and strength, making it ideal for structural applications requiring significant load-bearing capacity. A500 steel, on the other hand, is harder to bend and form due to its higher carbon and alloy content.
Manufacturing Process:
Another important difference between the ASTM A500 and A513 steel tube standards is in the manufacturing processes. The process of electric resistance welding (ERW) is used to make ASTM A513 tubing. This technique includes framing cold-rolled or hot-moved steel strips into a cylindrical shape and afterward welding the edges together utilizing electrical opposition. The ERW method is very effective and can be used to make a lot of tubing of the same quality. ASTM A513 steel lines can be produced using either carbon steel or composite steel, giving flexibility in gathering different mechanical necessities.
On the other hand, ASTM A500 tubing can be made using either welded or seamless processes. The most widely recognized approach includes hot-moved carbon steel materials that are then cold-framed and welded to make the end result. By introducing work hardening, the cold-forming process boosts the tubing's strength and mechanical properties, which are especially useful for structural applications. Through processes like extrusion or rotary piercing, seamless A500 tubes are made. These tubes don't have any welded seams, so they can be stronger and more reliable in some applications.
Heat treatment:
Heat treatment is a method that alters steel's mechanical properties by controlling its microstructure through cycles of heating and cooling. Depending on their intended uses, ASTM A500 steel tubes and A513 steel tube tubes require different heat treatments.
Heat treatment is typically not required for ASTM A500 standard steel pipes. These tubes are mostly used for structures because the manufacturing process, especially cold forming, gives them enough strength and toughness. The spotlight for A500 tubing is on giving sufficient burden bearing limit and underlying trustworthiness without the requirement for extra intensity therapy processes.
In contrast, in order to attain the desired mechanical properties, some varieties of steel pipes covered by the ASTM A513 Tube standard may be subjected to heat treatment. This is particularly valid for amalgam steel variations of A513 tubing, where heat treatment cycles like strengthening, normalizing, or extinguishing and treating can be utilized to upgrade explicit properties like hardness, strength, and malleability. The tubing can be used for a wider range of mechanical applications because heat treatment gives you more control over its final characteristics.
Size Range:
There are also significant differences between the steel tubing sizes covered by the ASTM A500 and ASTM A513 standards. ASTM A513 gives a more extensive scope of aspects, with breadths going from as little as 0.25 crawls to as extensive as 12 inches. Because of its extensive size range, A513 tubing is ideal for a variety of applications requiring both small and large diameter tubes. The broad size range permits makers to create tubing that meets explicit layered prerequisites for different ventures, including car, furniture, and hardware.
However, ASTM A500 tubing has a slightly narrower diameter range, typically ranging from 0.375 inches to 12 inches. A500 tubing is mostly used for structural applications, even though it comes in a wide range of sizes. This standard's sizes are adequate for use in infrastructure, construction projects, and other load-bearing applications where the mechanical strength and durability of the tubing are crucial.
ASTM A513 Tube Supplier:
While obtaining ASTM A513 Tube, it is fundamental to pick a provider that gives top notch items and sticks to the rigid necessities of the ASTM norms. ASTM A513 tubing is produced and sold by Longma Group, a reputable company that offers grades 1010, 1015, and 1020. Longma is focused on conveying items that meet the particular necessities of their clients, guaranteeing that their tubing performs dependably in different mechanical applications.
The proficiency with which Longma Group manufactures ASTM A513 tubing ensures that the dimensional tolerances and mechanical properties of their products are consistently met. By picking Longma Gathering as your provider, you can be certain that you are getting excellent tubing that will satisfy the needs of your application. Whether you require standard sizes or custom aspects, Longma Gathering can give the tubing arrangements you really want.
You can get in touch with Longma Group at info@longma-group.com for additional information or to place an order. If you have any inquiries or specific requirements regarding ASTM A513 tubing, their team of experts can help.
