API 5L X80 pipe represents a significant advancement in pipeline technology, offering superior properties compared to conventional grades like X60 and X70. Understanding these differences is crucial for engineers and project managers in the oil and gas industry to make informed decisions about pipeline materials. This comprehensive analysis explores the key differentiating factors that set X80 apart from other grades.
|
|
|
What is the difference between API 5L X80 and other grades in terms of pressure-bearing capacity?
API 5L X80 pipe demonstrates remarkable pressure-bearing capabilities that significantly surpass lower grades. With a minimum yield strength of 80,000 psi (552 MPa), X80 offers approximately 14% higher strength compared to X70 (70,000 psi) and 33% higher than X60 (60,000 psi). This enhanced strength allows for operation at higher pressures while maintaining structural integrity.
The superior pressure-bearing capacity of X80 enables several practical advantages in pipeline construction and operation. Engineers can either maintain the same wall thickness as lower grades while achieving higher operating pressures or reduce wall thickness while maintaining equivalent pressure ratings. This flexibility often translates to material cost savings and improved installation efficiency. In high-pressure natural gas transmission lines operating at 1,440 psi (10 MPa), X80 pipes can be designed with approximately 15-20% thinner walls compared to X70 while maintaining the same safety factor. This reduction in material usage not only decreases project costs but also facilitates easier transportation and installation.
How does the corrosion resistance of API 5L X80 compare with other grades?
The corrosion resistance characteristics of API 5L X80 Pipe are notably different from other grades, primarily due to its refined microstructure and chemical composition. The pipe's superior corrosion resistance stems from its carefully controlled manufacturing process, which typically involves thermomechanical controlled processing (TMCP) and accelerated cooling.
Research has shown that X80 exhibits better resistance to hydrogen-induced cracking (HIC) compared to lower grades when properly manufactured. This enhanced resistance is attributed to the more uniform distribution of fine-grained microstructure and reduced segregation of alloying elements. Studies have demonstrated that X80 pipes show approximately 25-30% lower corrosion rates in sour service environments compared to X60 grades. Although API 5L X80 steel has many mechanical benefits, such as fracture toughness, it is crucial to remember that corrosion resistance depends heavily on the choice of material and the application of efficient coating and protection techniques. Pipelines operating in harsh environments, particularly those exposed to soil, water, and chemicals in both onshore and offshore applications, are particularly vulnerable to corrosion. Although X80 steel performs better than lower-grade steel by nature, it is still susceptible to corrosion, especially in harsh environments. Advanced coating systems are necessary to optimize the corrosion resistance of X80 steel pipes.
What is the difference in temperature adaptability between API 5L X80 and other grades?
For pipelines that must function in a variety of environmental conditions, such as extremely cold or extremely hot temperatures, temperature adaptability is an essential component of pipeline design. Because of its optimized microstructure and chemical composition, which offer exceptional performance over a broad temperature range, API 5L X80 steel has clear advantages in this area. Because of this, X80 steel is a great option for pipelines that must withstand harsh operating conditions, like those found in high-pressure gas lines, offshore oil and gas transportation, or areas with sharp seasonal temperature swings.
In low-temperature applications, X80 maintains better ductility compared to lower grades. Testing has shown that X80 can maintain acceptable toughness values at temperatures as low as -45°C, while some lower grades may become brittle at these temperatures. This superior low-temperature performance is particularly valuable in arctic and sub-arctic pipeline installations. At elevated temperatures, X80 maintains its strength properties more effectively than lower grades. While all steel grades experience some strength reduction at higher temperatures, X80's higher baseline strength means it retains adequate structural integrity even at elevated operating temperatures. Studies indicate that X80 maintains approximately 90% of its room temperature yield strength at 100°C, compared to 85% for X70.
What is the difference in fracture toughness between API 5L X80 and other grades?
One of API 5L X80 steel's most significant advantages over inferior materials is its fracture toughness, especially in high-pressure pipeline applications. API 5L X80 pipe improved fracture toughness is the result of careful microstructure control during production. The fine-grained structure produced by this control greatly enhances the material's resistance to crack initiation and propagation under stress. Controlling the cooling rates during the manufacturing process, such as through controlled rolling or accelerated cooling techniques, is usually how the fine-grained microstructure is created. As a result, the grain boundaries are distributed more uniformly, improving the material's capacity to absorb energy and tolerate the stresses placed on it during pipeline operation.
Laboratory testing has shown that X80 typically exhibits Charpy V-notch impact values of 200-250 J at 0°C, significantly higher than the 100-150 J commonly observed in X60 and X70 grades. This superior toughness translates to better resistance against brittle fracture and improved crack arrest capabilities in real-world applications. The higher fracture toughness of X80 also contributes to better fatigue resistance. Research indicates that X80 pipes can withstand approximately 30% more pressure cycles before fatigue failure compared to X70 pipes under similar conditions. This improved fatigue resistance is particularly valuable in applications involving pressure fluctuations or cyclic loading.

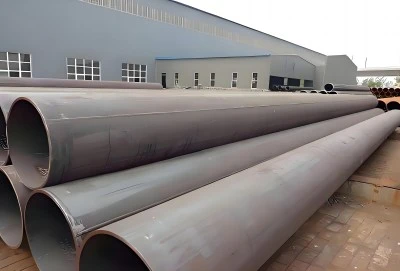

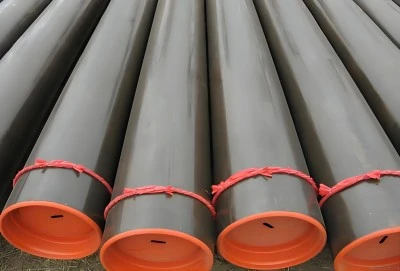

API 5L X80 Pipe For Sale
LONGMA GROUP manufactures API 5L X80 pipe in accordance with both PSL1 and PSL2 specifications. For inquiries about our API 5L X80 Pipe products, please contact us at info@longma-group.com. Our technical team is available to assist with material selection and specifications to ensure optimal performance for your specific application.
