In the realm of gas pipeline protection, two methods stand out for their effectiveness and widespread use: Epoxy Coated Steel Gas Pipe and galvanization. Both techniques aim to protect steel pipes from corrosion and extend their service life, but they do so through different mechanisms and offer distinct advantages.
|
|
|
Protection mechanism:
Galvanization and epoxy covering differ significantly in their security systems. Epoxy covering makes a real limit that withdraws the steel pipe from the damaging environment. The use of a dainty yet sturdy layer of epoxy sap to the steel line's surface gives this obstruction insurance. The epoxy coating forms an impermeable layer that protects the steel surface from corrosive elements like water, oxygen, and aggressive chemicals when applied correctly.
The effectiveness of an epoxy coating as a barrier protection depends on the thickness of the coating, the quality of the epoxy material, and the thoroughness of the application process. Epoxy coatings of top notch are intended to be impervious to a great many synthetic substances and natural circumstances, sufficiently adaptable to endure pipe development and warm extension, and have fantastic bond to the steel surface.
Epoxy Coated Steel Gas Pipe typically go through a cycle that begins with careful surface preparation of the steel pipe and often includes grating impacting to create a perfect, roughened surface for optimal grip. After that, either as a powder or a fluid, the epoxy is applied, and it is restored to frame a hard, solid covering. The epoxy can cross-connect and obtain its full defensive properties during the restoring system, which might include heat treatment.

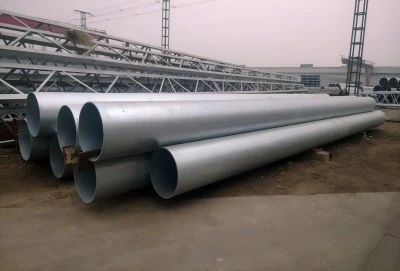

In contrast, the steel pipe beneath galvanized steel is protected by a sacrificial anode protection mechanism. During the galvanizing process, the steel pipe is coated with zinc using hot-dip galvanization. During this process, the steel pipe is immersed in a bath of molten zinc, forming a metallurgical bond with the steel surface.
The galvanized steel's protective mechanism is based on the electrochemical properties of zinc and steel. Zinc will specially consume in a destructive climate over steel since it is more electrochemically dynamic (less honorable). The fundamental steel is protected from erosion by zinc's conciliatory behavior.
When galvanized steel pipes are exposed to corrosive conditions, the zinc coating acts as a sacrificial anode. After some time, it gradually erodes, safeguarding the steel's cathode. Even if the zinc coating is scratched or damaged, exposing a small portion of the underlying steel, this sacrificial mechanism will continue to protect the surrounding zinc.
Corrosion resistance:
The gas pipe's performance varies significantly depending on the environment and conditions it is in. Galvanization and epoxy coating both provide resistance to corrosion.
The epoxy coating is resistant to corrosion well in humid, acidic, and alkaline environments. Epoxy coatings' ability to establish a constant, impermeable boundary that protects the steel from damaging elements is what ensures their viability in the face of erosion.
In humid environments, epoxy coatings excel at preventing moisture from reaching the steel surface. This is especially important for underground pipelines or those in places where the climate is particularly sticky. Many epoxy plans' hydrophobic design enhances their resistance to dampness and water.
Acidic environments pose a threat to steel pipes because unprotected steel can rapidly corrode. Chemically resistant epoxy coatings, in particular, can withstand a variety of acids without deteriorating or allowing the corrosive substances to penetrate the steel surface. Along these lines, epoxy-covered lines can be utilized in modern settings or in regions with acidic soil.
Epoxy Coated Steel Gas Pipe, then again, keep up with their trustworthiness and defensive characteristics even in soluble conditions, which can be similarly as destructive to steel. Epoxy coatings are flexible for use in an assortment of soil types and modern settings because of their protection from both acidic and soluble circumstances.
Epoxy coatings can likewise be made to endure specific substance openings, making them versatile to different working circumstances. Coatings, for example, can be intended to endure hydrocarbon openness, which is particularly significant for gas pipelines.
The epoxy covering's protection from erosion is enormously affected by the thickness of the covering. Typically, thicker coatings provide superior protection and a longer service life. In any case, it is essential to keep in mind that the covering needs to be applied consistently and without bending in order to provide complete security.
In any case, in a few destructive conditions, stirred steel may not proceed as well as epoxy coatings. Galvanized steel, on the other hand, is very resistant to atmospheric corrosion. In conditions both rustic and metropolitan, where oxygen and dampness are the essential destructive specialists, the zinc covering offers brilliant assurance.
The zinc covering forms a protective coating of zinc carbonate under barometric conditions, slowing down the rate of zinc erosion. The electrified coatings' capacity for self-recovery enhances their long-term suitability for numerous outdoor applications.
Anyway, in extra powerful circumstances, for instance, shoreline areas with salt sprinkle or present day settings with compound toxins, the disintegration block of zaps steel may be compromised. Electrifies coatings face specific difficulties in salt splash conditions since chloride particles can quickly go after the zinc and speed up its pace of erosion.
In environments that are extremely acidic or alkaline, galvanized coatings may also perform less effectively than epoxy coatings. While the zinc gives some confirmation through its mollifying approach to acting, it might be quickly consumed in significantly horrendous conditions, leaving the fundamental steel frail.
Wear resistance:
The wear resistance of protective coatings is a critical factor in the longevity and performance of gas pipelines, particularly in applications where the pipes may be subject to mechanical stress, abrasion, or impact. In this aspect, epoxy coatings and galvanized steel exhibit different characteristics.
Epoxy Coated Steel Gas Pipes are generally more wear-resistant than galvanized coatings. The high cross-linking density of cured epoxy resins results in a hard, durable surface that can withstand significant mechanical stress. This wear resistance is one of the key advantages of epoxy coatings in pipeline applications.
The wear resistance of epoxy coatings can be further enhanced through the incorporation of additives or fillers. For example, some epoxy formulations include ceramic particles or other hard materials that increase the coating's resistance to abrasion and impact. This makes epoxy-coated pipes particularly suitable for applications where the pipeline may be exposed to abrasive materials, such as in slurry transport or in areas with rocky soil conditions.
In the event of minor damage to an epoxy coating, such as scratches or small areas of wear, the remaining coating continues to provide barrier protection to the underlying steel. While repairs may be necessary for more significant damage, the localized nature of wear on epoxy coatings means that the overall integrity of the protective layer is often maintained even if small areas are compromised.
Galvanized steel, while offering good corrosion protection, is generally less wear-resistant than epoxy coatings. The zinc coating applied through hot-dip galvanization is softer than the underlying steel and can be more susceptible to mechanical damage.
In some cases, the galvanized coating may be worn or scratched, potentially exposing the steel to the corrosive environment. This is particularly problematic in applications where the pipe is subject to frequent abrasion or impact, such as in above-ground installations or during pipe handling and installation.
The thickness of the galvanized coating influences its wear resistance to some extent. Thicker zinc coatings provide more material to withstand wear before the underlying steel is exposed. However, there are practical limits to the thickness of galvanized coatings that can be achieved through standard hot-dip processes.
Epoxy Coated Steel Gas Pipe manufacturer:

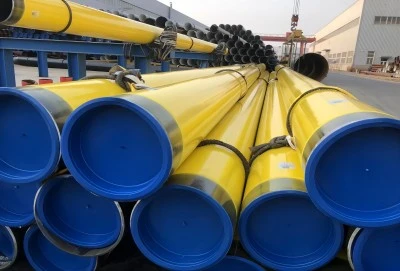

When it comes to sourcing epoxy-coated steel gas pipes, selecting a reliable manufacturer is crucial for ensuring the quality and performance of the pipeline system. One such manufacturer is the Longma Group, which supplies epoxy-coated steel gas pipes that comply with several international coating standards, including DIN 30670, DIN30678, CSAZ245.20, EN10339, ISO21809-1, AWWAC210, and C213.
The Longma Group's adherence to these diverse standards demonstrates their commitment to producing pipes that meet global quality requirements. These standards cover various aspects of pipe coatings, including application methods, performance requirements, and testing procedures. If you are choosing your Epoxy Coated Steel Gas Pipe manufacturers, welcome to contact us at info@longma-group.com.
