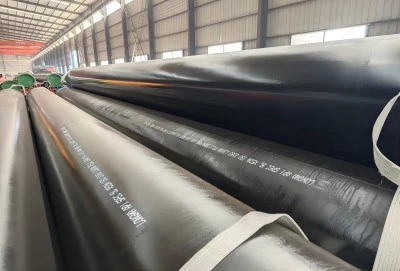

API 5L X52 pipe is a widely used grade of steel pipe in the oil and gas industry, known for its excellent mechanical properties and pressure-bearing capabilities. Understanding the pressure rating of API 5L X52 pipe is crucial for engineers and operators involved in pipeline design, construction, and maintenance. The pressure rating determines the maximum allowable operating pressure that the pipe can safely withstand during service. This comprehensive guide explores the key factors that determine pressure ratings, relevant industry standards, and typical applications of API 5L X52 pipe, providing essential information for professionals working with pipeline systems.
|
|
|
Factors Affecting the Pressure Rating of API 5L X52
The pressure rating of API 5L X52 pipe is influenced by several interconnected factors that must be carefully considered during pipeline design and operation. The material properties, physical dimensions, and environmental conditions all play critical roles in determining the maximum allowable operating pressure. Understanding these factors is essential for ensuring safe and reliable pipeline operations while optimizing system performance and cost-effectiveness.
Material strength is one of the fundamental factors affecting pressure rating. API 5L X52 has a minimum yield strength of 52,000 psi (358 MPa) and a minimum tensile strength of 66,000 psi (455 MPa). These mechanical properties directly impact the pipe's ability to withstand internal pressure without permanent deformation or failure. The relationship between material strength and pressure rating follows the principles of hoop stress, where higher strength enables greater pressure containment capabilities. The chemical composition and heat treatment processes used during manufacturing also influence the final strength properties. Modern steelmaking techniques ensure consistent material properties throughout the pipe wall, contributing to reliable pressure ratings.
Wall thickness serves as a critical design parameter that significantly influences pressure rating. According to the modified Barlow's formula used in pipeline engineering, pressure rating is directly proportional to wall thickness. Thicker walls provide greater resistance to internal pressure but must be balanced against practical considerations like material costs and weight. Standard wall thicknesses for API 5L X52 pipe typically range from 4.8mm to 40mm, with each thickness corresponding to specific pressure rating capabilities. The selection of wall thickness must account for various factors including internal pressure, external loads, corrosion allowance, and installation methods. Manufacturing tolerances for wall thickness must also be considered when determining pressure ratings, as variations can affect the pipe's pressure-bearing capacity.
The diameter of API 5L X52 pipe has an inverse relationship with pressure rating. As pipe diameter increases, the pressure rating generally decreases when all other factors remain constant. This relationship stems from the larger surface area exposed to internal pressure in pipes with greater diameters. Engineers must carefully evaluate the trade-off between flow capacity requirements and pressure rating when selecting pipe diameters. The impact of diameter on pressure rating becomes particularly significant in large-diameter pipelines, where even small changes in operating pressure can have substantial effects on system design and material requirements. Additionally, the diameter-to-wall thickness ratio (D/t ratio) plays a crucial role in determining the pipe's resistance to collapse and buckling under external pressure.
Design factors introduce safety margins into pressure rating calculations based on service conditions and location. These factors typically range from 0.40 to 0.80, with lower values providing greater safety margins. Offshore pipelines often require more conservative design factors due to their challenging operating environment and limited accessibility for maintenance. The selection of appropriate design factors considers multiple variables including population density near the pipeline, type of service, operating conditions, and regulatory requirements. Environmental factors such as temperature fluctuations, soil conditions, and marine environments can also influence the choice of design factors. Regular assessment and monitoring of these conditions help ensure that the selected design factors remain appropriate throughout the pipeline's service life.
Industry Standards and Codes
The pressure rating determination for API 5L X52 pipe is governed by multiple industry standards and codes that ensure safety and reliability. The primary standard is API 5L, which establishes the manufacturing specifications and minimum requirements for line pipes. This standard works in conjunction with design codes like ASME B31.3 for process piping and ASME B31.8 for gas transmission systems. These standards provide comprehensive guidelines for material selection, design calculations, fabrication methods, and testing requirements. They are regularly updated to incorporate new technologies and lessons learned from industry experience.
The calculation of pressure ratings must comply with applicable standards while considering specific project requirements. Standards specify minimum material properties, allowable stress values, and safety factors for different service conditions. They also define quality control requirements during manufacturing and testing procedures to verify pressure-bearing capability. The evolution of these standards reflects advances in materials science, engineering knowledge, and safety requirements over time.
The distinction between pressure test and design pressure is fundamental to pipeline engineering. Pressure testing typically involves subjecting the pipe to hydrostatic pressure at 1.5 times the design pressure for a specified duration. This testing verifies the structural integrity and leak-tightness of the pipeline system. Design pressure, conversely, represents the maximum allowable operating pressure under normal conditions, incorporating appropriate safety factors and material strength considerations. The relationship between test pressure and design pressure ensures adequate safety margins while validating construction quality and system integrity.
Typical Applications and Pressure Ranges
API 5L X52 pipe finds extensive application in various sectors of the oil and gas industry. In crude oil transmission pipelines, operating pressures typically range from 600 to 1200 psi (4.1 to 8.3 MPa), depending on system requirements and terrain. Natural gas transmission systems often operate at higher pressures, ranging from 800 to 1500 psi (5.5 to 10.3 MPa). These pressure ranges reflect the balance between transportation efficiency and safety considerations.
Different application scenarios require specific pressure rating considerations. Gathering systems in oil and gas fields may operate at lower pressures but face challenges from corrosive fluids and varying flow conditions. Long-distance transmission pipelines must maintain higher pressures to ensure efficient transportation while managing pressure drop across the system. The selection of appropriate pressure ratings considers factors such as product characteristics, operating temperature, terrain, and system requirements.
The pipe's performance under varying pressure conditions demonstrates its versatility. Under high-pressure applications, proper attention must be given to joint design, valve selection, and corrosion protection systems. Low-pressure applications, while less demanding on the pipe's structural capabilities, still require careful consideration of factors like flow characteristics and pressure drop. The ability to withstand pressure variations during normal operation and upset conditions is essential for long-term reliability.
China API 5L X52 Steel Pipe

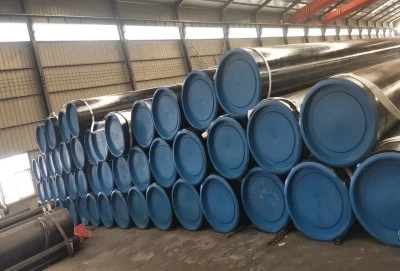

LONGMA GROUP has established itself as a prominent manufacturer of API 5L X52 pipe, offering products that meet both PSL1 and PSL2 specification levels. Their manufacturing processes adhere to strict quality control measures, ensuring compliance with international standards while maintaining competitive pricing. The company's commitment to quality is demonstrated through comprehensive testing programs and third-party certifications.
The manufacturing capabilities include advanced rolling and heat treatment facilities that ensure consistent material properties and dimensional accuracy. Quality control procedures cover all aspects of production, from raw material selection to final inspection and testing. Modern testing equipment and qualified personnel ensure that all products meet or exceed applicable standards.
The company's product line includes various sizes and wall thicknesses of X52 pipe, suitable for different application requirements. Their technical expertise enables customization of products to meet specific project needs while maintaining compliance with international standards. For those seeking reliable API 5L X52 steel pipe supply from China, LONGMA GROUP provides comprehensive technical support and can be contacted at info@longma-group.com. Their experienced team assists customers in selecting appropriate specifications based on application requirements and operating conditions.
