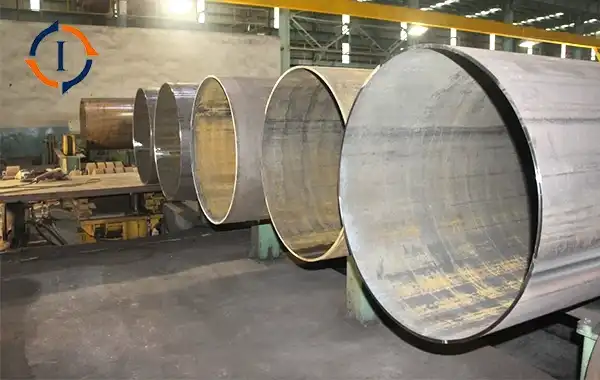

API 5L PSL1 Pipe
Grades:B,X42,X46,X52,X56,X60,X65,X70,X80
Level:PSL1
Outer Diameter: 1/8"-80"
Thickness:SCH10-SCH160
Fastest Delivery Time: 7 Days+
Related Certificates: API 5L Certificate,ISO Certificate,QMS Certificate...
Introduction of API 5L PSL1 Pipe:
|
Product Name |
API 5L PSL1 Pipe |
|
Standard |
API 5L Gr.B, X42, X46, X52, X56, X60, X65, X70, X80 |
|
Grade |
PSL1 |
|
Welding Type |
ERW(Electrical Resistance Weld), HFW(High Frequency Weld), LSAW(Longitudinally Submerged Arc Welding), DSAW(Double Submerged Arc Welding), SSAW(Spirally Submerged Arc Welding) |
|
Outer Diameter |
1/8"-80" (10.3mm--2032mm) |
|
Thickness |
SCH10-SCH160 (6.35mm-59.54mm) |
|
Length |
6m-18m |
|
End |
BE(Beveled Ends), PE(Plain Ends) |
|
Test |
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test |
|
Fastest Delivery Time |
7 Days for normal specification |
|
|
|
API 5L PSL1 Pipe Specification:
|
Outer Diameter |
Norminal Wall Thickness(mm) |
|||
|
INCH |
MM |
|||
|
1/8-80 |
10.3-2032 |
6.35-59.54 |
||
Chemical Composition and Mechanical Properties:
|
Standard |
Grade |
Chemical Composition(max)% |
Mechanical Properties(min) |
|||||
|
C |
Si |
Mn |
P |
S |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
||
|
API 5L PSL1 |
B |
0.26 |
- |
1.2 |
0.03 |
0.03 |
415 |
415 |
|
X42 |
0.26 |
- |
1.3 |
0.03 |
0.03 |
415 |
415 |
|
|
X46 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
435 |
435 |
|
|
X52 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
460 |
460 |
|
|
X56 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
490 |
490 |
|
|
X60 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
520 |
520 |
|
|
X65 |
0.26 |
- |
1.45 |
0.03 |
0.03 |
535 |
535 |
|
|
X70 |
0.26 |
- |
1.65 |
0.03 |
0.03 |
570 |
570 |
|
Our Advantages for API 5L PSL1 Pipe:
· Competitive Price: We have long-term stable cooperation with raw material factories, mature and complete production supporting facilities, a rigorous quality control system, and an integrated model that keeps our production costs at a relatively low level.
· Fast Delivery Time: The production of steel pipes with standard specification can be completed in as fast as 7 days.
· Complete Certification: All types of certificates are available, including API 5L certificate, ISO 9001 certificate, ISO 14001 certificate, FPC certificate, Environmental Quality System certificate, and more.
· Advanced Production Equipment: We imported the equipment from Germany and developed independently four production equipments.
· Professional Team: We have over 300 employees, including more than 60 technical personnel, and possesses an independent equipment research team.
· Comprehensive Testing Facilities: We are equipped with various testing facilities, including but not limited to online ultrasonic automatic flaw detectors, industrial X-ray television and other essential testing equipment.
Application:
Longma Group's API 5L PSL1 Pipe find wide-ranging applications in:
|
|
|
| Oil and gas pipelines | Water and liquid transportation |
|
|
|
| Offshore/Onshore construction | Electricity, Heating Power and etc |
Longma Group:
Hebei Longma Group Limited(LONGMA GROUP) is one of China leading ERW/LSAW steel pipe manufacturers since 2003, with a registered capital of 441.8 billion, covering an area of 230000 square meters. The company specializes in the production: large-diameter, thick-walled, double-sided, sub-arc-seam, welding steel pipe, LSAW-Longitudinal Submerged Arc Welded, ERW steel pipes. By the end of 2023, the company's annual output exceeded 1000000 tons. We offer fast delivery of API 5L PSL1 Pipes in various sizes, ensuring timely completion of projects and uninterrupted operations for our clients. Our competitive pricing and cost-effective solutions make us the preferred choice for contractors, engineers, and project managers worldwide. For inquiries or assistance, please contact us at info@longma-group.com.
|
|
|
|
FAQ:
Q: What is the difference between PSL1 and PSL2 pipes?
A: The main difference lies in the level of testing and quality control. PSL2 pipes undergo more rigorous testing, including non-destructive inspection, to ensure higher quality and performance.
Q: Can API 5L PSL1 Pipes be used for offshore applications?
A: Yes, API 5L PSL1 Pipes are suitable for offshore installations, but additional measures may be required to mitigate the effects of corrosion and environmental factors.
Q: Are API 5L PSL1 Pipes environmentally friendly?
A: Yes, API 5L PSL1 Pipes are manufactured using materials and processes that comply with environmental regulations, minimizing their impact on the environment.
We offer fast delivery of API 5L PSL1 Pipes in various sizes, ensuring timely completion of projects and uninterrupted operations for our clients. Our competitive pricing and cost-effective solutions make us the preferred choice for contractors, engineers, and project managers worldwide.
