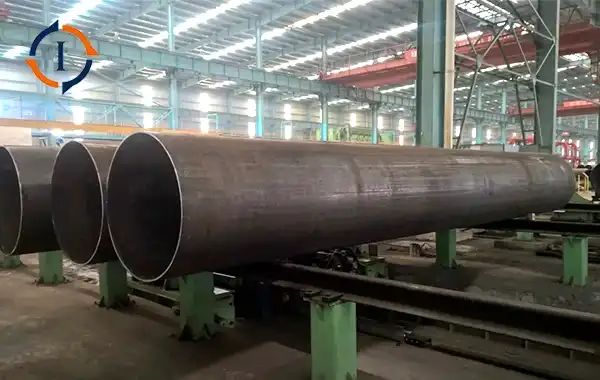

API 5L PSL2 Pipe
Grades:B,X42,X46,X52,X56,X60,X65,X70,X80
Level:PSL2
Outer Diameter: 1/8"-80"
Thickness:SCH10-SCH160
Fastest Delivery Time: 7 Days+
Related Certificates: API 5L Certificate,ISO Certificate,QMS Certificate...
Introduction of API 5L PSL2 Pipe:
|
Product Name |
API 5L PSL2 Pipe |
|
Standard |
API 5L Gr.B, X42, X46, X52, X56, X60, X65, X70, X80 |
|
Grade |
PSL2 |
|
Welding Type |
ERW(Electrical Resistance Weld), HFW(High Frequency Weld), LSAW(Longitudinally Submerged Arc Welding), DSAW(Double Submerged Arc Welding), SSAW(Spirally Submerged Arc Welding) |
|
Outer Diameter |
1/8"-80" (10.3mm--2032mm) |
|
Thickness |
SCH10-SCH160 (6.35mm-59.54mm) |
|
Length |
6m-18m |
|
End |
BE(Beveled Ends), PE(Plain Ends) |
|
Test |
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test |
|
Fastest Delivery Time |
7 Days for normal specification |
|
|
|
API 5L PSL2 Pipe Specification:
|
Outer Diameter |
Norminal Wall Thickness(mm) |
|||
|
INCH |
MM |
|||
|
1/8-80 |
10.3-2032 |
6.35-59.54 |
||
Chemical Composition and Mechanical Properties of API 5L PSL2 Pipe:
|
Standard |
Grade |
Chemical Composition(max)% |
Mechanical Properties(min) |
|||||
|
C |
Si |
Mn |
P |
S |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
||
|
API 5L PSL2 |
B |
0.22 |
0.45 |
1.2 |
0.025 |
0.015 |
415 |
415 |
|
X42 |
0.22 |
0.45 |
1.3 |
0.025 |
0.015 |
415 |
415 |
|
|
X46 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
435 |
435 |
|
|
X52 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
460 |
460 |
|
|
X56 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
490 |
490 |
|
|
X60 |
0.12 |
0.45 |
1.6 |
0.025 |
0.015 |
520 |
520 |
|
|
X65 |
0.12 |
0.45 |
1.6 |
0.025 |
0.015 |
535 |
535 |
|
|
X70 |
0.12 |
0.45 |
1.7 |
0.025 |
0.015 |
570 |
570 |
|
|
X80 |
0.12 |
0.45 |
1.85 |
0.025 |
0.015 |
625 |
625 |
|
Our Advantages for API 5L PSL2 Pipe:
· Competitive Price: We have long-term stable cooperation with raw material factories, mature and complete production supporting facilities, a rigorous quality control system, and an integrated model that keeps our production costs at a relatively low level.
· Fast Delivery Time: The production of steel pipes with standard specification can be completed in as fast as 7 days.
· Complete Certification: All types of certificates are available, including API 5L certificate, ISO 9001 certificate, ISO 14001 certificate, FPC certificate, Environmental Quality System certificate, and more.
· Advanced Production Equipment: We imported the equipment from Germany and developed independently four production equipments.
· Professional Team: We have over 300 employees, including more than 60 technical personnel, and possesses an independent equipment research team.
· Comprehensive Testing Facilities: We are equipped with various testing facilities, including but not limited to online ultrasonic automatic flaw detectors, industrial X-ray television and other essential testing equipment.
Application:
Longma Group's API 5L PSL2 Pipe find wide-ranging applications in:
|
|
|
| Oil and gas pipelines | Water and liquid transportation |
|
|
|
| Offshore/Onshore construction | Electricity, Heating Power and etc |
FAQ:
Q: What distinguishes API 5L PSL2 Pipe from other types of pipes?
A: API 5L PSL2 Pipe is specifically designed to meet the stringent requirements of the oil and gas industry, offering seamless construction, high strength, and superior corrosion resistance.
Q: Can API 5L PSL2 Pipe be used in offshore applications?
A: Yes, API 5L PSL2 Pipe is suitable for both onshore and offshore environments, providing reliable performance even in harsh marine conditions.
Q: Is customization available for API 5L PSL2 Pipe sizes?
A: Yes, Longma offers customization options to ensure that the pipe dimensions meet the specific requirements of your project.
Q: How does Longma ensure the quality of its API 5L PSL2 Pipe?
A: Longma employs stringent quality control measures throughout the manufacturing process, including material inspection, dimensional checks, and hydrostatic testing, to ensure that our pipes meet the highest standards of quality and performance.
Longma Group:
Hebei Longma Group Limited(LONGMA GROUP) is one of China leading ERW/LSAW steel pipe manufacturers since 2003, with a registered capital of 441.8 billion, covering an area of 230000 square meters. The company specializes in the production: large-diameter, thick-walled, double-sided, sub-arc-seam, welding steel pipe, LSAW-Longitudinal Submerged Arc Welded, ERW steel pipes. By the end of 2023, the company's annual output exceeded 1000000 tons.
API 5L PSL2 Pipe stands as a testament to innovation and excellence in pipeline technology. With its seamless construction, exceptional strength, and unmatched reliability, it offers a versatile solution for a wide range of industrial applications. Backed by Longma's commitment to quality and customer satisfaction, the API 5L PSL2 Pipe is poised to redefine the standards of pipeline performance. Contact us at info@longma-group.com to learn more about how our high-quality, cost-effective solutions can benefit your project.
|
|
|
|
