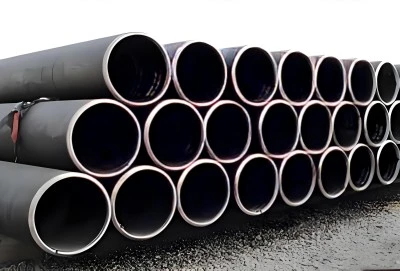

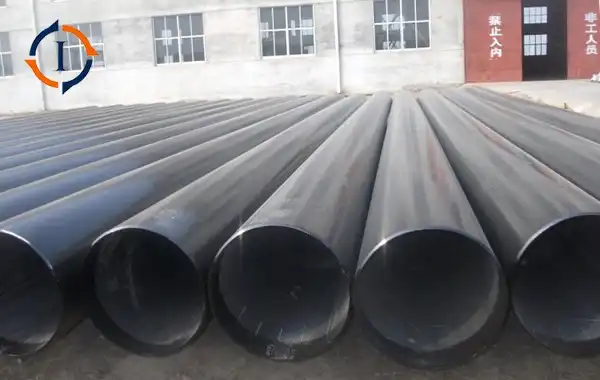

API 5L X42 Pipe
Grades:X42
Level:PSL1,PSL2
Outer Diameter: 1/2"-80"
Thickness:SCH10-SCH160
Fastest Delivery Time: 7 Days+
Related Certificates: API 5L Certificate,ISO Certificate,QMS Certificate...
Introduction of API 5L X42 Pipe:
|
Product Name |
API 5L X42 Pipe |
|
Standard and Grade |
API 5L X42 PSL1, PSL2 |
|
Welding Type |
ERW(Electrical Resistance Weld), HFW(High Frequency Weld), LSAW(Longitudinally Submerged Arc Welding), DSAW(Double Submerged Arc Welding), SSAW(Spirally Submerged Arc Welding) |
|
Outer Diameter |
1/2"-80" (21.3mm--2032mm) |
|
Thickness |
SCH10-SCH160 (6.35mm-59.54mm) |
|
Length |
6m-18m |
|
End |
BE(Beveled Ends), PE(Plain Ends) |
|
Test |
Chemical Component Analysis, Mechanical Properties (Tensile strength, Yield strength, Elongation), Ultrasonic Testing, NDT(nondestructive testing), Hydrostatic Test, X-ray Test |
|
Fastest Delivery Time |
7 Days for normal specification |
|
|
|
API 5L X42 Pipe Specification:
|
Outer Diameter |
Norminal Wall Thickness(mm) |
|||
|
INCH |
MM |
|||
|
1/2-80 |
21.3-2032 |
6.35-59.54 |
||
Chemical Composition:
|
Steel Grade |
Chemical Composition % |
|||||
|
API 5L X42(PSL1) |
C max |
Mn max |
P max |
S max |
Ti max |
Others |
|
0.28 |
1.30 |
0.030 |
0.030 |
0.04 |
b,c |
|
|
API 5L X42(PSL2) |
0.24 |
1.30 |
0.025 |
0.015 |
0.04 |
b,c |
a. Nb+V≤0.03%
b. According to the manufacturer's choice, Nb, V, or their combination can be added.
c. Nb+V+Ti≤0.15%
Nb+V≤0.06%
Mechanical Properties:
|
Steel Grade |
Tensile Strength Mpa |
Yield Strength Mpa |
Elongation (%) |
|
API 5L X42(PSL1) |
414 min |
290 min |
_ |
|
API 5L X42(PSL2) |
414-758 |
290-496 |
_ |
Our Advantages for API 5L X42 Pipe:
· Competitive Price: We have long-term stable cooperation with raw material factories, mature and complete production supporting facilities, a rigorous quality control system, and an integrated model that keeps our production costs at a relatively low level.
· Fast Delivery Time: The production of steel pipes with standard specification can be completed in as fast as 7 days.
· Complete Certification: All types of certificates are available, including API 5L certificate, ISO 9001 certificate, ISO 14001 certificate, FPC certificate, Environmental Quality System certificate, and more.
· Advanced Production Equipment: We imported the equipment from Germany and developed independently four production equipments.
· Professional Team: We have over 300 employees, including more than 60 technical personnel, and possesses an independent equipment research team.
· Comprehensive Testing Facilities: We are equipped with various testing facilities, including but not limited to online ultrasonic automatic flaw detectors, industrial X-ray television and other essential testing equipment.
Application:
Longma Group's API 5L X42 Pipe find wide-ranging applications in:
|
|
|
|
Oil and gas pipelines |
Structural support for bridge, building construction |
|
|
|
|
Water and liquid transportation |
Piling and foundation work in construction project |
|
|
|
|
Offshore/Onshore construction |
Electricity and Heating power |
FAQ:
Q: What distinguishes API 5L X42 Pipe from other pipeline materials?
A: API 5L X42 Pipe offers a unique combination of strength, durability, and corrosion resistance, surpassing conventional materials such as PVC and ductile iron. Its compliance with stringent API standards ensures consistency and quality assurance throughout the manufacturing process.
Q: Can API 5L X42 Pipe be customized to suit specific project requirements?
A: Yes, API 5L X42 Pipe can be customized in terms of dimensions, wall thickness, and surface finishes to accommodate diverse project specifications. Our team at Longma specializes in providing tailored solutions to meet the unique needs of our clients.
Q: What is the typical lead time for delivery of API 5L X42 Pipe?
A: At Longma, we prioritize prompt delivery to meet project deadlines and minimize downtime. Our streamlined manufacturing processes and efficient logistics enable us to offer fast turnaround times for API 5L X42 Pipe across a wide range of sizes and quantities.
Longma Group:
Hebei Longma Group Limited(LONGMA GROUP) is one of China leading ERW/LSAW steel pipe manufacturers since 2003, with a registered capital of 441.8 billion, covering an area of 230000 square meters. The company specializes in the production: large-diameter, thick-walled, double-sided, sub-arc-seam, welding steel pipe, LSAW-Longitudinal Submerged Arc Welded, ERW steel pipes. By the end of 2023, the company's annual output exceeded 1000000 tons.
For inquiries or assistance, please contact us at info@longma-group.com, and let us partner with you in building a better future through resilient pipeline solutions.
|
|
|
|
