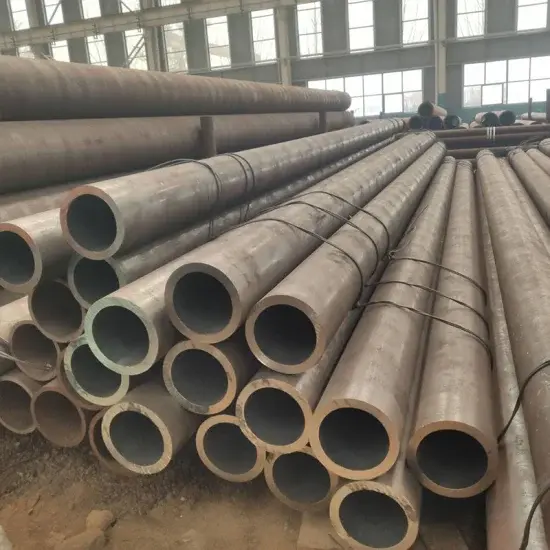

S235 Steel Pipe
Grades:S235JRH/J0H/J2H
Outer Diameter: 4"-56"
Thickness:0.237"-5.90"
Fastest Delivery Time: 7 Days+
Stock Quantity:100-200Tons
Introduction of S235 Steel Pipe:
Product Name: S235 Steel Pipe
Standard: EN10210
Grade: S235
Welding Type: ERW(Electrical Resistance Weld), HFW(High Frequency Weld), LSAW(Longitudinally Submerged Arc Welding), DSAW(Double Submerged Arc Welding), SSAW(Spirally Submerged Arc Welding)
Outer Diameter: 1/2"-80" (21.3mm--2032mm)
Thickness: SCH10-SCH160 (6.35mm-59.54mm)
Length: 6m-18m
End: BE(Beveled Ends), PE(Plain Ends)
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test
Fastest Delivery Time: 7 Days for normal specification
Specification:
| （ ANSI B36.10 B36.19M） Outside Diameter amd Wall Thickness | |||||||||||||||||||
| NPS | OD | Norminal Wall Thickness | |||||||||||||||||
| INCH | DN | MM | 5s | 10s | 10 | 20 | 30 | 40s | STD | 40 | 60 | 80s | XS | 80 | 100 | 120 | 140 | 160 | XXS |
| 1/8 | 6 | 10.3 | -- | 1.24 | -- | -- | -- | 1.73 | 1.73 | 1.73 | -- | 2.41 | 2.41 | 2.41 | -- | -- | -- | -- | -- |
| 1/4 | 8 | 13.7 | -- | 1.65 | -- | -- | -- | 2.24 | 2.24 | 2.24 | -- | 3.02 | 3.02 | 3.02 | -- | -- | -- | -- | -- |
| 3/8 | 10 | 17.1 | -- | 1.65 | -- | -- | -- | 2.31 | 2.31 | 2.31 | -- | 3.2 | 3.2 | 3.2 | -- | -- | -- | -- | -- |
| 0.5 | 15 | 21.3 | 1.65 | 2.11 | -- | -- | -- | 2.77 | 2.77 | 2.77 | -- | 3.73 | 3.73 | 3.73 | -- | -- | -- | 4.78 | 7.47 |
| 0.75 | 20 | 26.7 | 1.65 | 2.11 | -- | -- | -- | 2.87 | 2.87 | 2.87 | -- | 3.91 | 3.91 | 3.91 | -- | -- | -- | 5.56 | 7.82 |
| 1 | 25 | 33.4 | 1.65 | 2.77 | -- | -- | -- | 3.38 | 3.38 | 3.38 | -- | 4.55 | 4.55 | 4.55 | -- | -- | -- | 6.35 | 9.09 |
| 1.25 | 32 | 42.2 | 1.65 | 2.77 | -- | -- | -- | 3.56 | 3.56 | 3.56 | -- | 4.85 | 4.85 | 4.85 | -- | -- | -- | 6.35 | 9.7 |
| 1.5 | 40 | 48.3 | 1.65 | 2.77 | -- | -- | -- | 3.68 | 3.68 | 3.68 | -- | 5.08 | 5.08 | 5.08 | -- | -- | -- | 7.14 | 10.15 |
| 2 | 50 | 60.3 | 1.65 | 2.77 | -- | -- | -- | 3.91 | 3.91 | 3.91 | -- | 5.54 | 5.54 | 5.54 | -- | -- | -- | 8.74 | 11.07 |
| 2.5 | 65 | 73 | 2.11 | 3.05 | -- | -- | -- | 5.16 | 5.16 | 5.16 | -- | 7.01 | 7.01 | 7.01 | -- | -- | -- | 9.53 | 14.02 |
| 3 | 80 | 88.9 | 2.11 | 3.05 | -- | -- | -- | 5.49 | 5.49 | 5.49 | -- | 7.62 | 7.62 | 7.62 | -- | -- | -- | 11.13 | 15.24 |
| 3.5 | 90 | 101.6 | 2.11 | 3.05 | -- | -- | -- | 5.74 | 5.74 | 5.74 | -- | 8.08 | 8.08 | 8.08 | -- | -- | -- | -- | -- |
| 4 | 100 | 114.3 | 2.11 | 3.05 | -- | -- | -- | 6.02 | 6.02 | 6.02 | -- | 8.56 | 8.56 | 8.56 | -- | 11.13 | -- | 13.49 | 17.12 |
| 5 | 125 | 141.3 | 2.77 | 3.4 | -- | -- | -- | 6.55 | 6.55 | 6.55 | -- | 9.53 | 9.53 | 9.53 | -- | 12.7 | -- | 15.88 | 19.05 |
| 6 | 150 | 168.3 | 2.77 | 3.4 | -- | -- | -- | 7.11 | 7.11 | 7.11 | -- | 10.97 | 10.97 | 10.97 | -- | 14.27 | -- | 18.26 | 21.95 |
| 8 | 200 | 219.1 | 2.77 | 3.76 | -- | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 10 | 250 | 273.1 | 3.4 | 4.19 | -- | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 12 | 300 | 323.9 | 3.96 | 4.57 | -- | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 14 | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | -- | 9.53 | 11.13 | 15.09 | -- | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | -- |
| 16 | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | -- | 9.53 | 12.7 | 16.66 | -- | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | -- |
| 18 | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | -- | 9.53 | 14.27 | 19.05 | -- | 12.7 | 23.83 | 29.36 | 34.96 | 39.67 | 45.24 | -- |
| 20 | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | -- | 9.53 | 15.09 | 20.62 | -- | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | -- |
| 22 | 550 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | -- | 9.53 | -- | 22.23 | -- | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | -- |
| 24 | 600 | 609.6 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | -- | 9.53 | 17.48 | 24.61 | -- | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | -- |
| 26 | 650 | 660.4 | -- | -- | 7.92 | 12.7 | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 28 | 700 | 711.2 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 30 | 750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 32 | 800 | 812.8 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 17.48 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 34 | 850 | 863.6 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 17.48 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 36 | 900 | 914.4 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 19.05 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 38 | 950 | 965.2 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 40 | 1000 | 1016 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 42 | 1050 | 1066.8 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 44 | 1100 | 1117.6 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 46 | 1150 | 1168.4 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 48 | 1200 | 1219.2 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 52 | 1300 | 1321 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 56 | 1400 | 1422 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 60 | 1500 | 1524 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 64 | 1600 | 1626 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 68 | 1700 | 1727 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 72 | 1800 | 1829 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 76 | 1900 | 1930 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 80 | 2000 | 2032 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
Chemical Composition:
|
Steel Grade |
Chemical Composition % |
|||||
|
S235JRH
|
C |
Si |
Mn |
P |
S |
N |
|
0.17-0.20 |
1.40 max |
0.035 max |
0.035 max |
_ |
0.009 max |
|
Mechanical Properties:
|
Steel Grade |
Tensile Strength Mpa |
Yield Strength Mpa |
Elongation(%) |
|
S235JRH |
330-500 |
165-235 |
30 |
Our Advantages for S235 Steel Pipe:
· Competitive Price: We have long-term stable cooperation with raw material factories, mature and complete production supporting facilities, a rigorous quality control system, and an integrated model that keeps our production costs at a relatively low level.
· Fast Delivery Time: The production of steel pipes with standard specification can be completed in as fast as 7 days.
· Complete Certification: All types of certificates are available, including API 5L certificate, ISO 9001 certificate, ISO 14001 certificate, FPC certificate, Environmental Quality System certificate, and more.

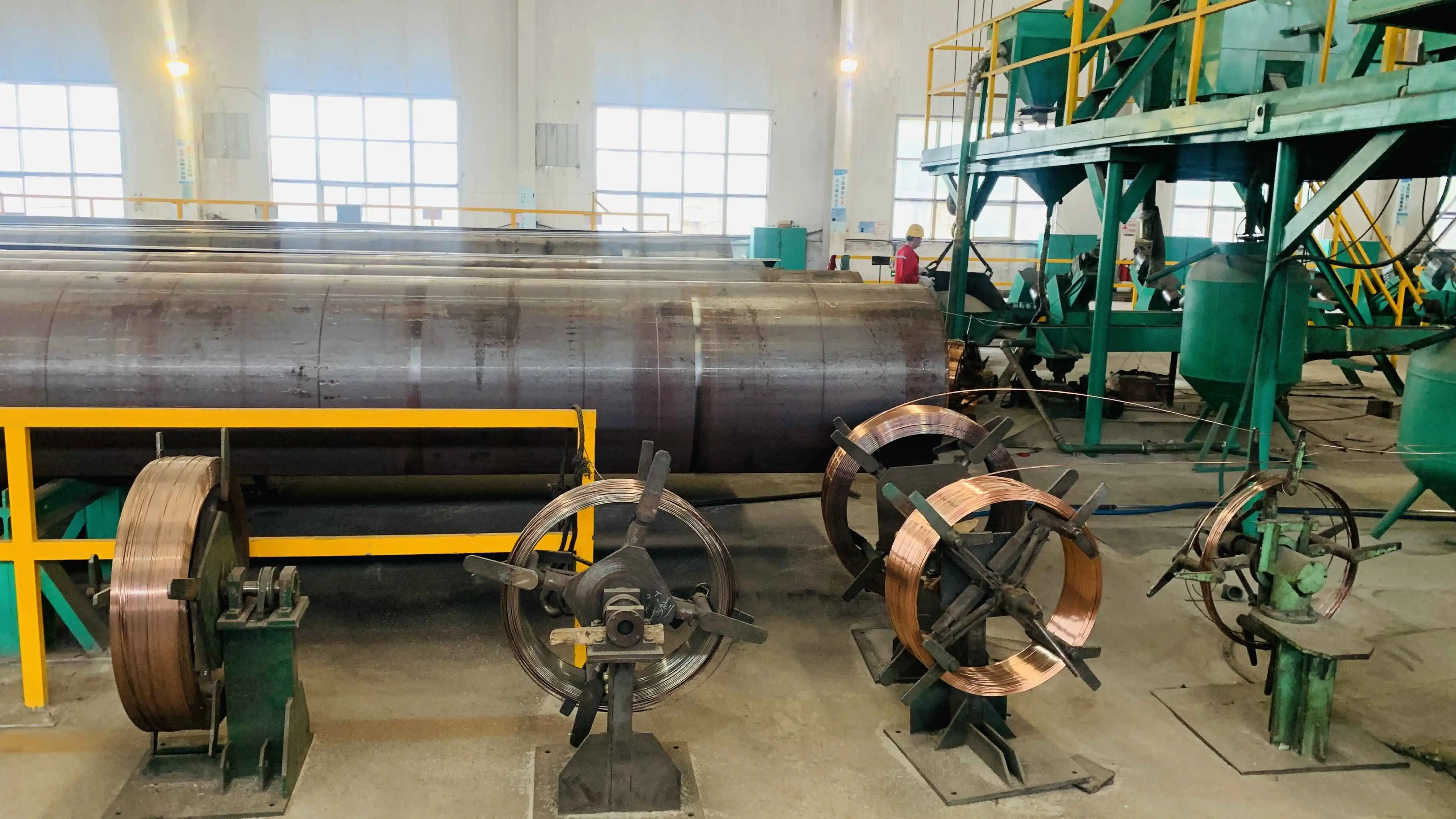

· Advanced Production Equipment: We imported the equipment from Germany and developed independently four production equipments.
· Professional Team: We have over 300 employees, including more than 60 technical personnel, and possesses an independent equipment research team.
· Comprehensive Testing Facilities: We are equipped with various testing facilities, including but not limited to online ultrasonic automatic flaw detectors, industrial X-ray television and other essential testing equipment.

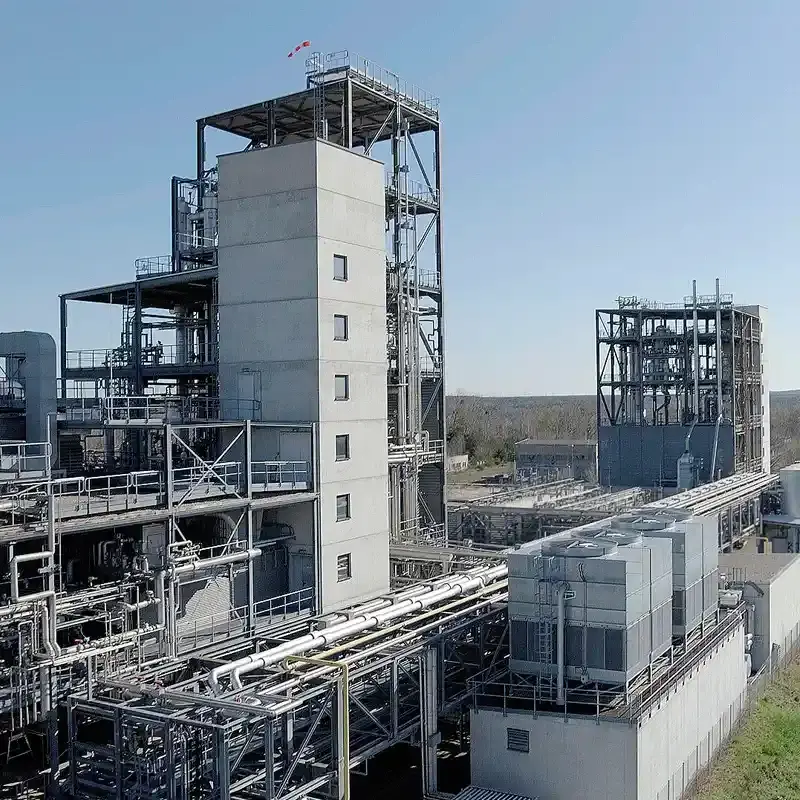

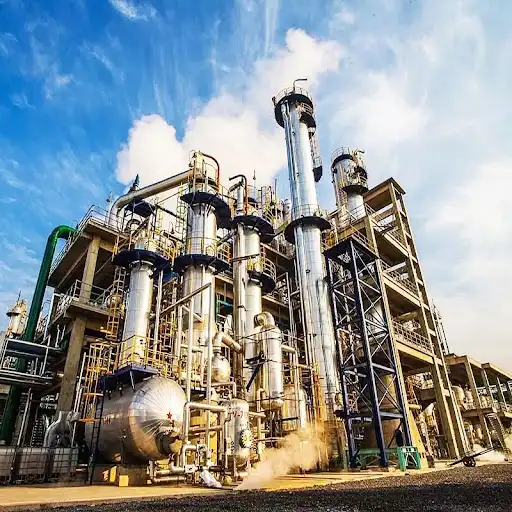

Application:
S235 Steel Pipe finds widespread use in various industries and applications, including:

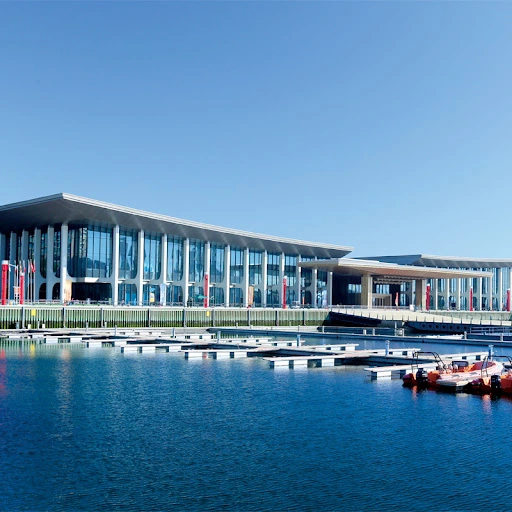

· Construction: Used in building frames, columns, beams, and other structural components in residential, commercial, and industrial construction projects.

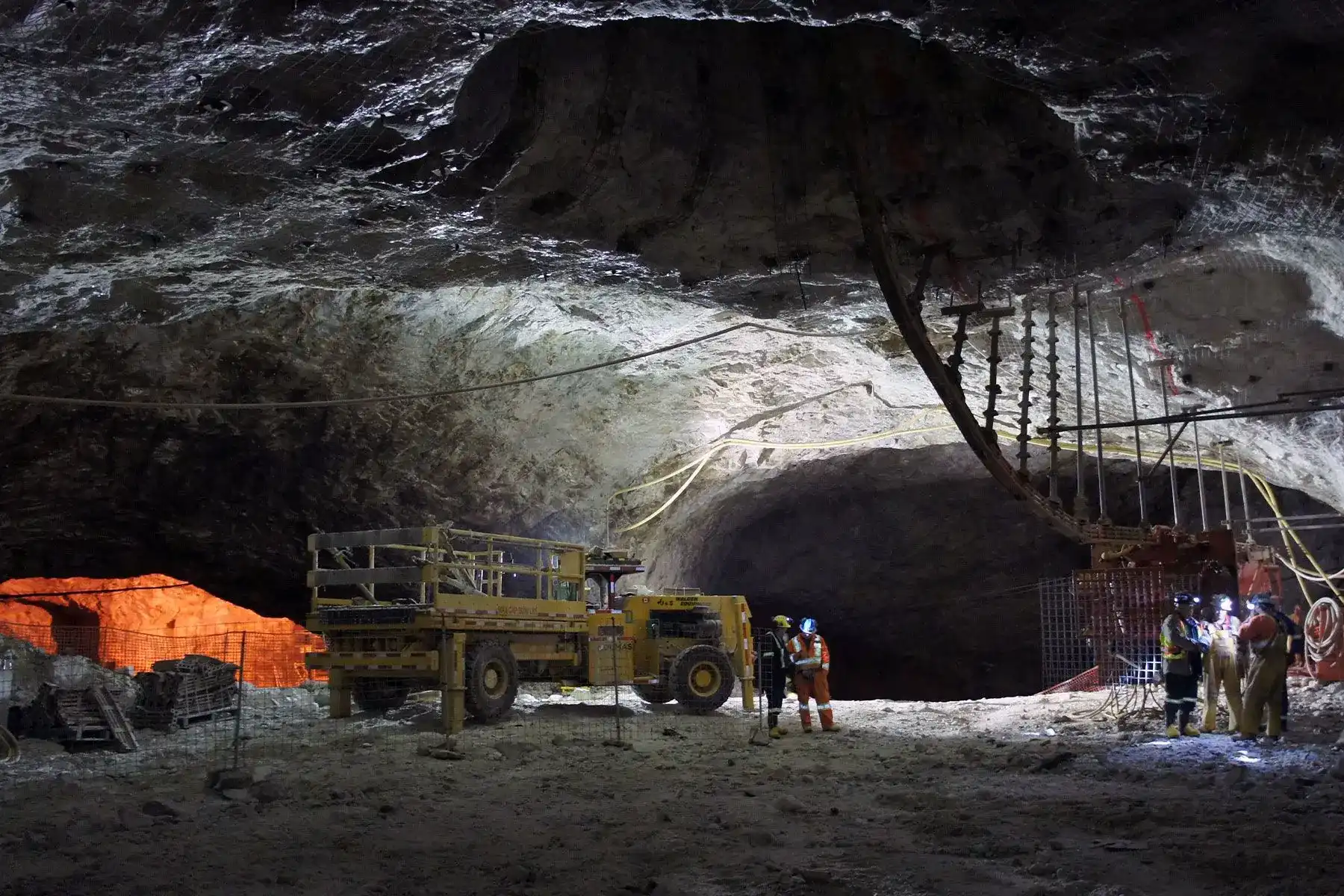

· Infrastructure: Employed in bridges, highways, tunnels, and other infrastructure projects for support and reinforcement.
· Machinery and Equipment: Utilized in the manufacturing of machinery, equipment frames, and supports for industrial applications.
· Transportation: Used in the construction of trailers, railcars, and other transportation equipment requiring structural strength and integrity.

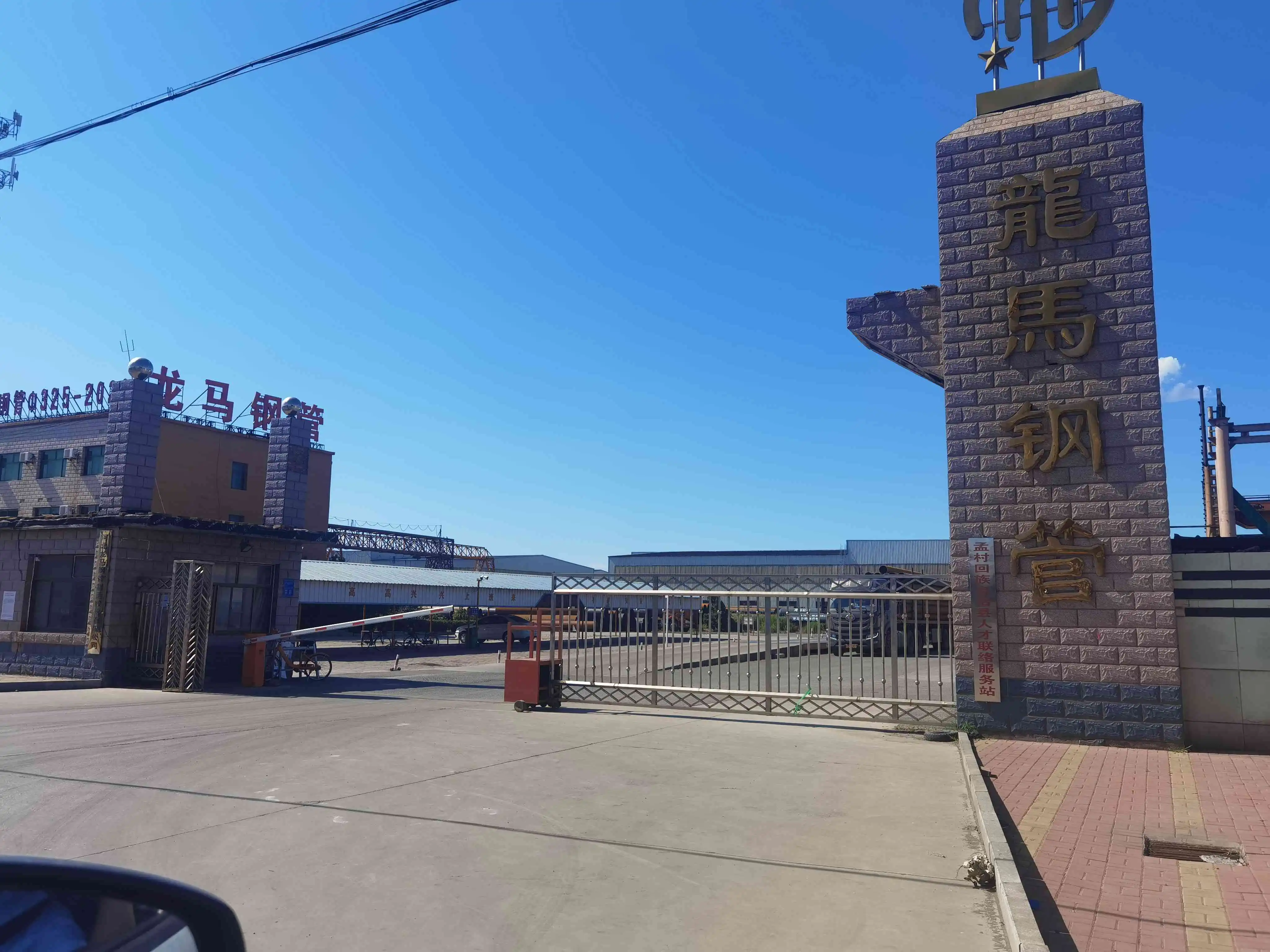

Longma Group:
Hebei Longma Group Limited(LONGMA GROUP) is one of China leading ERW/LSAW steel pipe manufacturers since 2003, with a registered capital of 441.8 billion, covering an area of 230000 square meters. The company specializes in the production: large-diameter, thick-walled, double-sided, sub-arc-seam, welding steel pipe, LSAW-Longitudinal Submerged Arc Welded, ERW steel pipes. By the end of 2023, the company's annual output exceeded 1000000 tons.
Contact Us:
If you're in need of top-quality S235 steel pipes backed by reliable service and competitive pricing, look no further than Longma. Contact us at info@longma-group.com to discuss your requirements and discover how we can fulfill your steel pipe needs efficiently and effectively.
FAQ:
Q: What is S235 steel?
A: S235 steel is a carbon structural steel with a specified minimum yield strength of 235 MPa. It is commonly used in construction and structural applications due to its excellent strength-to-weight ratio and versatility.
Q: What are the available sizes of S235 steel pipes?
A: Longma offers S235 steel pipes in a variety of sizes, ranging from small diameters suitable for residential projects to larger dimensions for industrial applications. Our comprehensive size range ensures compatibility with diverse project requirements.
Q: Are S235 steel pipes suitable for outdoor applications?
A: Yes, S235 steel pipes can be used in outdoor environments, provided they are properly coated or protected against corrosion. With the right surface treatment, these pipes offer excellent resistance to atmospheric corrosion, making them suitable for outdoor use.
Q: Can S235 steel pipes be welded?
A: Yes, S235 steel pipes can be welded using standard welding techniques. However, it is essential to follow proper welding procedures and ensure adequate ventilation to minimize the risk of weld defects and maintain structural integrity.
